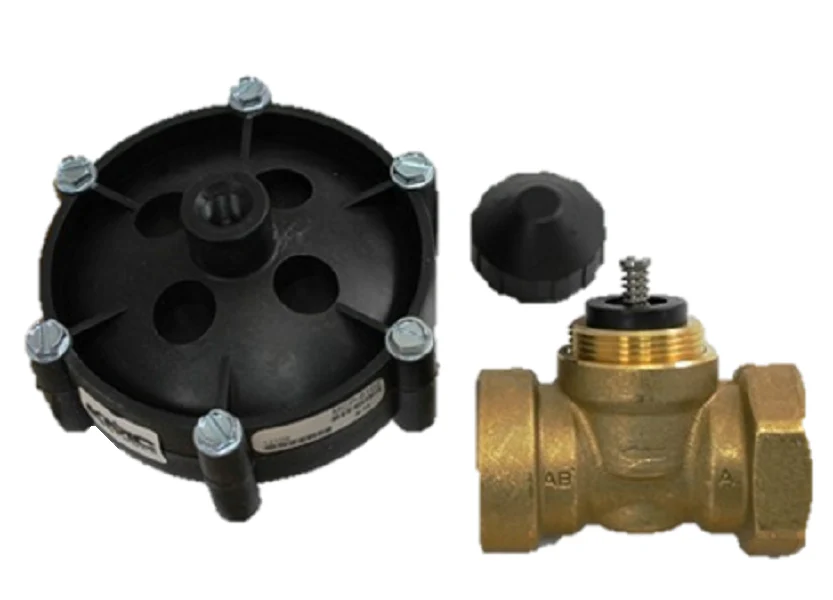

KMC Controls VCZ-4103AMBE Valve
The KMC Controls VCZ-4103AMBE Valve is a 3/4 inch NPT, 2-way normally open pneumatic zone valve engineered for precise control of hot or chilled water in commercial HVAC systems. This pneumatic globe valve is built for high-demand environments, commonly integrated into VAV terminal unit reheat coils, fan coil units, induction units, and finned tube convectors. With a flow coefficient (Cv) of 4.1 and a pneumatic actuator operating within an 8-13 PSI range, it ensures stable modulation for efficient hydronic performance. The rugged design features a glass-filled nylon housing and a neoprene diaphragm, providing durability in tight enclosures. For streamlined maintenance, the field-replaceable actuator can be swapped without tools, minimizing downtime. Its female NPT connection and fail-open functionality make it a reliable choice for contractors aiming for optimal fluid management and system reliability in zonal temperature control applications.
Key Benefits- Precise Flow Control: The 4.1 Cv rating and 8-13# pneumatic range provide accurate modulation for hydronic heating and cooling applications.
- Efficient Maintenance: Features a tool-free, field-replaceable actuator design, allowing for rapid servicing without removing the valve body from the line.
- Compact Footprint: Specifically designed for small enclosures, making it ideal for reheat coils and fan coil unit installations with limited space.
- Reliable Fail-Safe: The normally open (N/O) configuration ensures a fail-open status, allowing maximum flow during pneumatic pressure loss.
- Durable Construction: Engineered with a metal-to-metal seat and high-strength glass-filled nylon actuator housing for long-term service.
- What is the maximum operating temperature for this valve? This assembly typically handles media temperatures ranging from 40 to 180 degrees Fahrenheit, suitable for standard chilled water and hot water loops.
- Can I swap the actuator without specialized tools? Yes, the VCZ series is specifically designed with a quick-release mechanism that permits tool-free actuator replacement.
- Is the VCZ-4103AMBE compatible with 3-8 PSI systems? No, this specific model is calibrated for an 8-13 PSI control range; for 3-8 PSI applications, the "AMBD" variant is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
