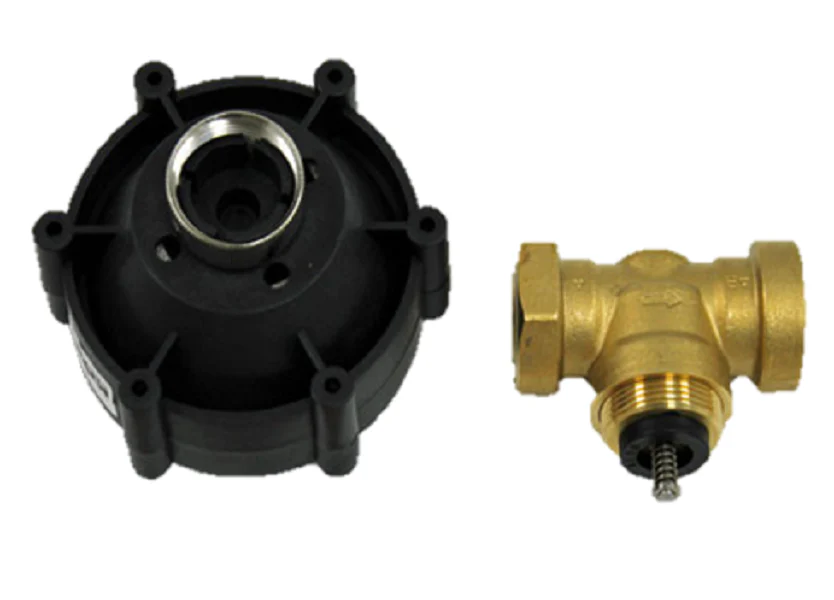

KMC Controls VCZ-4102AMBE Valve
For mid-size terminal unit applications, the KMC Controls VCZ-4102AMBE Pneumatic Zone Valve offers reliable modulation of hot or chilled water in VAV reheat coils, fan coil units, and induction systems. This 1/2-inch 2-way valve is engineered with a normally open (NO) fail-safe position, ensuring maximum flow through the system upon loss of control air pressure. The pneumatic actuator operates within an 8-13 psi spring range, providing precise positioning for units requiring a constant 1.0 Cv flow coefficient. Constructed with a robust brass body and a glass-filled nylon actuator housing, it is designed to withstand standard commercial environments while maintaining a compact footprint for tight enclosures. The field-replaceable actuator can be swapped without specialized tools, minimizing downtime during routine maintenance. This assembly is compatible with standard 1/2" NPT piping and supports high-performance fluid control in radiators and finned tube convectors.
Key Benefits- Fail-Safe Performance: Internal spring return ensures the valve remains normally open for heat or cooling delivery during pneumatic signal failure.
- Tool-Free Maintenance: The rugged pneumatic actuator is designed for quick field replacement without decoupling the 1/2" 2-way valve body from the line.
- Optimized Flow Control: A precision-machined 1.0 Cv rating allows for accurate throttling in low-flow hydronic terminal applications.
- Compact Integration: Space-saving design is ideal for installation within induction units and small VAV boxes.
What is the maximum operating pressure for this valve?
The KMC VCZ series typically handles a maximum inlet pressure of 125 PSI and is designed for water temperatures ranging from 40?? to 180??F.
Which control signal is required for operation?
This model requires a pneumatic signal compatible with a 8-13 psi range to modulate from the full-open to the closed position.
Can this valve be used for steam applications?
The VCZ-4102AMBE is specifically designed for hot or chilled water systems; refer to technical data sheets for specific steam trim requirements if needed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
