KMC Controls STE-6020-10 Sensor

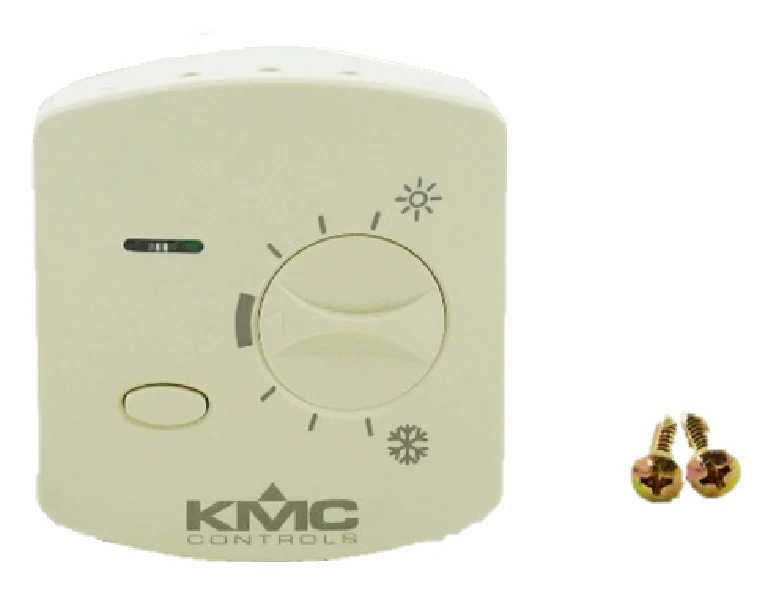

The KMC Controls STE-6020-10 is a high-precision 10K Type II thermistor room temperature sensor designed for seamless integration with building automation systems (BAS) and KMC digital controllers. This almond-colored wall-mount sensor features a legacy-style low-profile enclosure that ensures accurate ambient temperature monitoring within a 40??F to 120??F range. Engineered for commercial HVAC maintenance, it includes a localized rotary setpoint dial with warmer/cooler icons, a momentary override button for occupancy signaling, and a green status LED for visual feedback from the controller. The screw clamp terminals provide secure, vibration-resistant wire terminations, eliminating the need for specialized RJ-45 cabling in standard field installs. Whether you are performing a HVAC sensor replacement or commissioning a new KMDigital system, this unit offers the ??0.36??F accuracy required for tight environmental control and energy management.
Key Benefits
- High-Accuracy Sensing: Utilizes a 10,000 ohm NTC thermistor at 77??F to provide stable, drift-free temperature monitoring.
- Contractor-Friendly Wiring: Features reliable screw-type terminals for direct connection to HVAC control wiring.
- Integrated Local Overrides: Allows facility tenants to request after-hours HVAC overrides via a tactile front-panel button.
- Flexible Installation: Can be surface mounted to a hollow wall or adapted to a 2x4 electrical box using an HMO-6036 backplate.
- Industrial Build: Encased in flame-retardant plastic, suitable for demanding mechanical room or office environments.
Common Questions
How do I wire the KMC STE-6020-10 to a controller?
The unit utilizes four screw clamp terminals for connection: Terminal A (0?Çô10K potentiometer), Terminal B (Common/Ground), Terminal C (10K Thermistor), and Terminal D (10 VDC LED supply). Always refer to your specific KMC controller wiring diagram for proper input mapping.
What is the resistance curve for this sensor?
It follows the standard KMC 10K Type II (NTC) curve, with a resistance of 10,000 ohms at 25??C (77??F). This makes it compatible with most direct digital control (DDC) systems that support 10K-2 thermistors.
Can the setpoint dial be restricted?
The rotary setpoint dial provides a 0?Çô10K ohm linear output corresponding to a standard offset range (typically 54?Çô90??F). Mechanical limits for the dial are determined during software configuration within your BAS head-end.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
