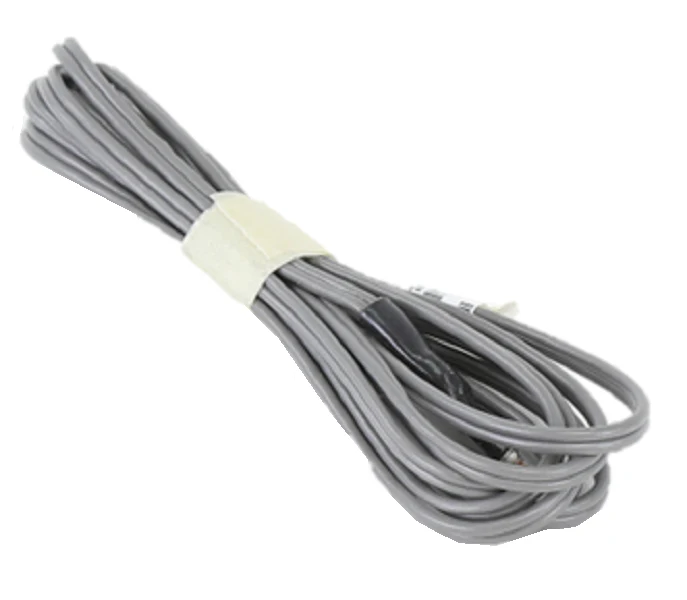

KMC Controls STE-1011 Type II Thermistor
The KMC Controls STE-1011 Type II Thermistor is a performance-critical temperature sensing component designed for seamless integration into commercial and residential HVAC automation systems. This precision 10k-T2 thermistor delivers highly accurate resistance-to-temperature feedback, ensuring your Building Automation System (BAS) or local controller maintains tight environmental tolerances. Featuring 5-foot leads, the STE-1011 offers the flexibility required for varied installation points, from duct-mounted airflow monitoring to ambient space sensing in air handling units or rooftop packages.
Engineered to match the standard 10k ohm Type II resistance curve, this sensor is a direct replacement or upgrade for systems requiring a 10K-T2 reference. The lead wires are ruggedized for duty in plenum environments, reducing the risk of signal interference or physical degradation in high-vibration HVAC settings. For technicians managing VAV controllers or terminal unit diagnostics, the STE-1011 provides the stable, repeatable data needed to optimize thermal efficiency and prevent equipment cycling. Its high-precision thermistor bead is calibrated for long-term drift resistance, maintaining system setpoint accuracy without the need for frequent field recalibration.
Key Benefits
- Matches industry-standard 10,000 ohm @ 77??F (25??C) Type II resistance curves for broad controller compatibility.
- Extended 5-foot lead wire length simplifies wiring in large air handlers and complex mechanical rooms.
- Robust construction supports HVAC temperature monitoring in both supply air and return air applications.
- High sensitivity to temperature fluctuations allows for rapid controller response and improved energy management.
- Compact sensor profile permits installation in tight spaces or direct mounting within custom probe assemblies.
Common Questions
Is the STE-1011 compatible with 10k Type III controllers?
No, this is a 10k Type II thermistor. While both have a base resistance of 10,000 ohms at 25??C, their resistance curves diverge at different temperatures. Always verify your controller's input requirements before installation.
Can the 5-foot leads be extended in the field?
Yes, you can extend the leads using shielded twisted pair wire. Ensure proper HVAC sensor wiring techniques are used to minimize added resistance, which can cause temperature offsets in the controller readings.
What applications is this thermistor used for?
The STE-1011 is commonly used for discharge air temperature sensing, room temperature monitoring, and as a feedback loop for chilled water or heating coil performance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
