KMC Controls SSS-1012 Sensor

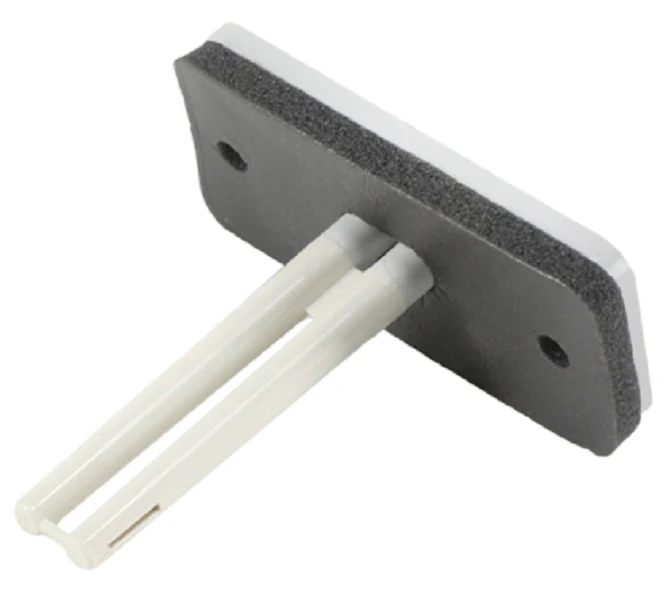

Reliable airflow measurement is the foundation of any efficient VAV system, and the KMC Controls SSS-1012 is a field-proven differential pressure flow sensor designed for exactly that. This airflow pickup tube, often referred to as a pitot tube, features a 3-5/32 inch (80mm) insertion length, making it the correct choice for smaller terminal box inlet diameters or branch ducts. As a veteran technician, you know that accuracy at the VAV controller depends on the signal quality from these ports. The SSS-1012 provides a single sensing point and is specifically engineered with 3/16 inch connections to fit 1/4 inch OD polyethylene tubing without the need for additional adapters. Whether you are integrating this into a Building Automation System (BAS) or performing a direct replacement in existing pneumatic or digital setups, its polycarbonate construction and integral flange with a foam gasket ensure a leak-free, high-integrity seal against the ductwork.
Key Benefits- Precision Differential Measurement: Accurately senses velocity pressure to enable precise CFM calculations in HVAC systems.
- Direct Tubing Compatibility: Feature 3/16 inch connectors designed for a secure fit with 1/4 inch OD tubing, streamlining installation.
- Simplified Mounting: The integral flange and foam gasket prevent air bypass and simplify duct mounting using standard self-tapping screws.
- Wide Application Range: Optimized for use with KMC CSP, KMD, and BAC series VAV controllers for individual zone control.
How do I ensure the most accurate airflow reading?
Orient the sensor so the flow arrow imprint points directly into the airflow. For maximum signal stability, install the probe in a straight run of duct away from elbows or transitions.
Can this sensor be used for static pressure?
Yes, by rotating the sensor 90 degrees and using only one of the ports, you can effectively measure static pressure for bypass control applications.
Is an adapter needed for KMC digital controllers?
Unlike the SSS-1000 series which requires a 3/8" to 1/4" adapter, the SSS-1012 connects directly to 1/4" OD tubing, saving time on the job site.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $24.13
-65%$24.13
$8.45KMC Controls SSS-1012 Sensor
Reliable airflow measurement is the foundation of any efficient VAV system, and the KMC Controls SSS-1012 is a field-proven differential pressure flow sensor designed for exactly that. This airflow pickup tube, often referred to as a pitot tube, features a 3-5/32 inch (80mm) insertion length, making it the correct choice for smaller terminal box inlet diameters or branch ducts. As a veteran technician, you know that accuracy at the VAV controller depends on the signal quality from these ports. The SSS-1012 provides a single sensing point and is specifically engineered with 3/16 inch connections to fit 1/4 inch OD polyethylene tubing without the need for additional adapters. Whether you are integrating this into a Building Automation System (BAS) or performing a direct replacement in existing pneumatic or digital setups, its polycarbonate construction and integral flange with a foam gasket ensure a leak-free, high-integrity seal against the ductwork.
Key Benefits- Precision Differential Measurement: Accurately senses velocity pressure to enable precise CFM calculations in HVAC systems.
- Direct Tubing Compatibility: Feature 3/16 inch connectors designed for a secure fit with 1/4 inch OD tubing, streamlining installation.
- Simplified Mounting: The integral flange and foam gasket prevent air bypass and simplify duct mounting using standard self-tapping screws.
- Wide Application Range: Optimized for use with KMC CSP, KMD, and BAC series VAV controllers for individual zone control.
How do I ensure the most accurate airflow reading?
Orient the sensor so the flow arrow imprint points directly into the airflow. For maximum signal stability, install the probe in a straight run of duct away from elbows or transitions.
Can this sensor be used for static pressure?
Yes, by rotating the sensor 90 degrees and using only one of the ports, you can effectively measure static pressure for bypass control applications.
Is an adapter needed for KMC digital controllers?
Unlike the SSS-1000 series which requires a 3/8" to 1/4" adapter, the SSS-1012 connects directly to 1/4" OD tubing, saving time on the job site.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
