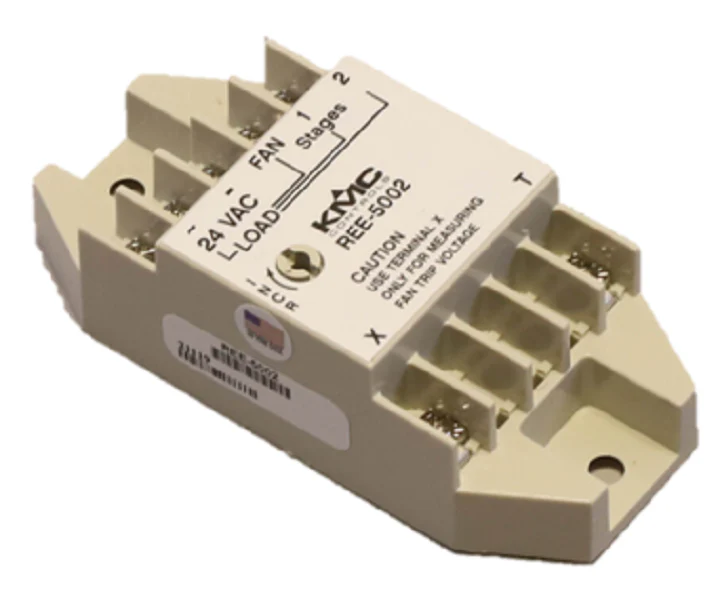

The KMC Controls REE-5002 is a professional-grade triac relay module specifically engineered for VAV fan-powered induction boxes and terminal unit control. Designed for seamless integration with direct-acting thermostats like the CTE-5202 or CTE-5100 series, this module provides precise management of a single-stage fan and 2-stage electric reheat systems. HVAC technicians value the REE-5002 for its adjustable fan start-point, which can be calibrated between 0 and 3,000 fpm. This allows contractors to maximize the use of warm plenum air before engaging the 24V reheat stages, significantly improving energy efficiency. The solid-state triac outputs are rated at 10 VA each, ensuring quiet, reliable switching without the mechanical wear associated with traditional relays. Sequentially actuated heating circuits prevent abrupt electrical load spikes, maintaining stable discharge temperatures in commercial environments. Built with a flame-retardant plastic enclosure, this module is a staple for reliable HVAC building automation and zone control applications.
  • Optimized Airflow Management: Fully adjustable fan starting point (0?Çô3,000 fpm) captures return air heat before activating coils.
  • Precision Reheat Control: Two-stage sequential actuation ensures consistent temperature discharge and reduced cycling.
  • Solid-State Reliability: High-efficiency triac outputs eliminate mechanical points, reducing long-term maintenance in ceiling-mounted VAV boxes.
  • Universal 24VAC Compatibility: Standard 24V power requirement simplifies integration into existing low-voltage control circuits.
Common Questions & Technical Insights

How do I wire the REE-5002 for sequential reheating?
The module is factory-set to actuate the reheat stages in sequence after the fan starts. Ensure your 24VAC common is shared across the thermostat and the REE-5002 common terminal to prevent signal floating.

Can this relay be used with non-KMC thermostats?
While optimized for the CTE-5202 and CTE-5100 series, the REE-5002 can interface with various direct-acting 0-10 VDC or 2-10 VDC controllers, provided the output VA ratings are respected.

What is the maximum load per output?
Each of the three triac outputs (Fan, Reheat 1, Reheat 2) is rated to handle up to 10 VA at 24 VAC, making it suitable for standard contactors and solenoids.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
