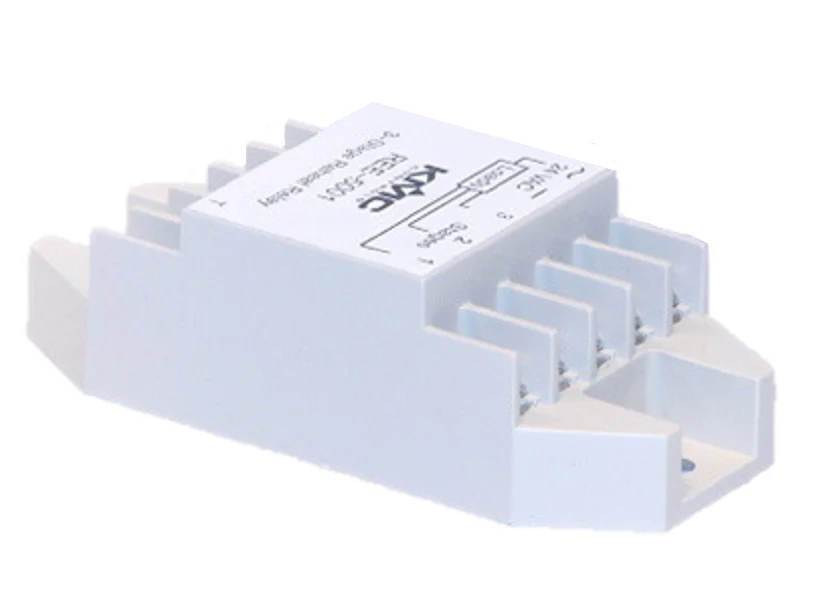

KMC Controls REE-5001 Relay
For veteran technicians managing VAV terminal units, the KMC Controls REE-5001 is a robust 3-stage electric reheat relay designed for precise temperature modulation. This module integrates seamlessly with 0-10 VDC input signals, typically sourced from reverse-acting outputs of CTE-5100 series thermostats like the CTE-5104. Engineered with a triac-based control system, it manages up to three stages of heating or cooling by actuating at equally spaced intervals across the thermostat's proportional band. Stage 1 triggers at 3.5 VDC, Stage 2 at 6.5 VDC, and Stage 3 at 9.5 VDC, all maintaining a consistent 2 VDC switching differential. Each output is rated to handle 24 VAC loads up to 10 VA, making it an essential component for maintaining tight setpoints in commercial data centers, hospitals, and office environments. The unit?ÇÖs compact ABS housing fits directly into a standard 2 x 4 handy box, utilizing 14-22 AWG stranded wiring for a reliable, low-maintenance installation in any HVAC reheat application.
Key Benefits- Multi-Stage Modulation: Provides three distinct stages of reheat to prevent temperature swings and improve occupant comfort.
- High Compatibility: Specifically designed for VAV system controls and works with CTE-5102, CTE-5103, and CTE-5202 reverse-acting thermostats.
- Reliable Switching: Features a triac relay module design for silent, long-lasting operation compared to traditional mechanical contactors.
- Efficient Footprint: Modern 24 VAC relay design mounts easily in small enclosures or directly to control box surfaces.
What is the maximum load for each stage on the REE-5001?
Each of the three stages is capable of driving a 24 VAC contactor with a maximum power draw of 10 VA.
Can this relay be used for cooling stages?
Yes, while most commonly used for reheat, it can actuate up to three stages of heating or cooling depending on the thermostat configuration and sequence of operations.
What wire size is recommended for the screw terminals?
The plated screw terminals are designed to accept stranded wire between 14 and 22 AWG for secure electrical connectivity.
