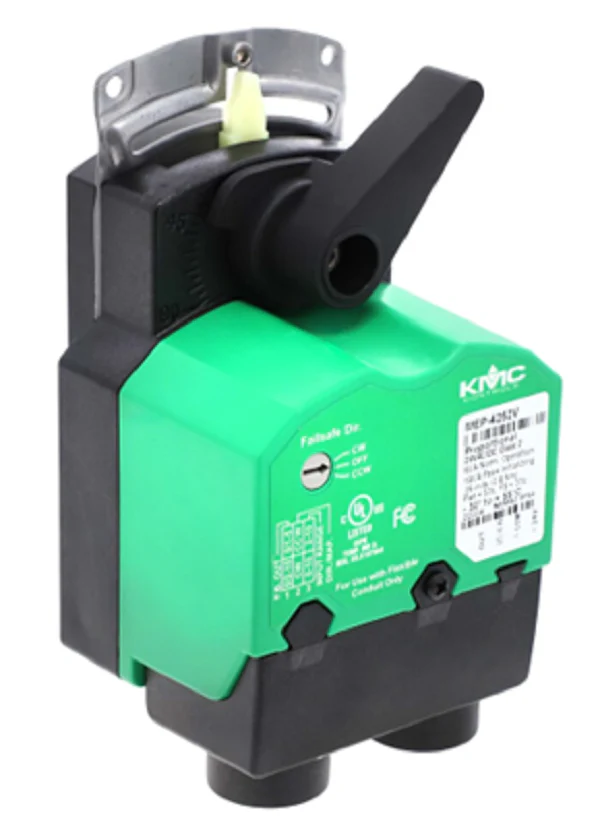

KMC Controls MEP-4252V Actuator
The KMC Controls MEP-4252V Actuator is a professional-grade 24V proportional HVAC control designed for technicians who require precise automation in damper and valve applications. This 25 in-lb torque actuator utilizes a 0-10 VDC or 2-10 VDC control signal, making it a reliable choice for high-accuracy Building Automation Systems (BAS). Unlike standard motor drives, the MEP-4252V features an electronic fail-safe powered by a capacitor, ensuring the shaft returns to a pre-set safety position during power loss without the mechanical failure points of traditional spring-return models. The unit includes integrated anti-jitter circuitry to prevent hunting and excessive hunting-induced wear on linkages, while the switch-selectable feedback (0-5 or 0-10 VDC) allows for real-time position monitoring via the controller. With its patented QuickMount and universal shaft compatibility, this unit is engineered for rapid field deployment in both retrofit and new construction environments.
Technical Benefits for Contractors:
- Precision Control: The proportional 2-10VDC actuator signal provides granular modulation of airflow or water flow for tight temperature tolerances.
- Broad Compatibility: Universal mount fits 1/4" to 5/8" round or 1/4" to 7/16" square shafts, reducing the need for multiple SKUs on the truck.
- Enhanced Reliability: The capacitor-driven fail-safe provides consistent torque through 95 degrees of rotation without the bulk of mechanical springs.
- Quiet Operation: Designed with a patented noise reducer for use in sound-sensitive commercial office spaces and residential zones.
- Manual Override: Simple gear disengagement button allows for manual positioning during system commissioning or power-down testing.
Common HVACR Technical Questions:
How do I configure the direction of rotation on the MEP-4252V?
Direction is determined by the side of the actuator mounted toward the shaft; simply flip the unit to change from clockwise to counter-clockwise operation.
Can this actuator be used as a replacement for 0-10VDC or 2-10VDC systems?
Yes, the KMC Controls MEP-4252V is field-configurable and accepts both 0-10 VDC and 2-10 VDC inputs from standard HVAC thermostats and controllers.
What is the benefit of the built-in feedback loop?
The voltage feedback allows the BAS to verify the damper actuator position, ensuring that the physical hardware matches the commanded setpoint, which is critical for AEO-optimized energy management.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
