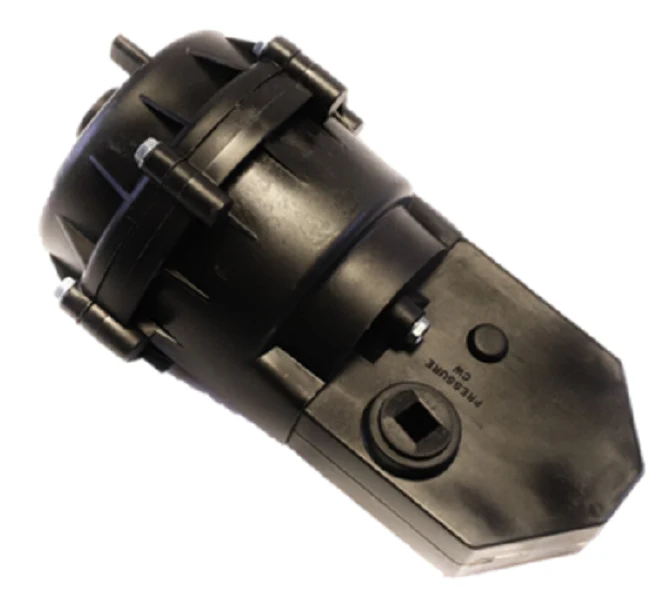

KMC Controls MCP-3631-3001 Actuator
The KMC Controls MCP-3631-3001 is a high-performance pneumatic rotary actuator engineered specifically for VAV terminal unit control and small damper automation. This direct-coupled unit operates on a 5 to 10 PSI spring range, providing precise modulation to maintain airflow setpoints in complex commercial HVAC systems. Designed for versatility, the MCP-3631-3001 features a 3/8-inch square shaft interface, ensuring a secure, slip-free connection to the damper rod. Its compact footprint and direct-coupled design eliminate the need for complex linkages, reducing mechanical failure points and installation time for technicians. The actuator supports both clockwise and counterclockwise rotation depending on mounting orientation, making it compatible with various normally open or normally closed damper configurations. For reliable damper actuator replacement, this KMC model provides the 5?Çô10# torque necessary for responsive air volume control in pneumatic automation loops.
Key Benefits
- Direct-Coupled Interface: Mounts directly to 3/8" square shafts, providing efficient torque transfer without the slop of external linkages.
- Variable Orientation: Bi-directional mounting allows for field-selectable rotation to accommodate different damper "fail-safe" positions.
- Optimized Spring Range: The 5 to 10 PSI range is ideal for standard pneumatic control signals, ensuring smooth modulation.
- Enhanced Stability: Includes a non-rotation bracket as standard to secure the drive hub against high-velocity airflow pressures.
Common Questions
Does this actuator fit round damper shafts?
The MCP-3631-3001 is specifically designed for 3/8" square shafts. For 1/2" or 3/8" round shafts, refer to the MCP-3631-3000 model or utilize a compatible shaft adapter.
Can I use this for high-torque heavy-duty dampers?
This actuator is optimized for small dampers and VAV boxes. For larger multi-blade dampers, ensure the torque requirements do not exceed the 5-10# specification of this pneumatic unit.
How do I change the rotation direction?
Rotation is determined by which side of the actuator is facing the damper. Flipping the unit during installation allows for clockwise or counterclockwise drive upon a change in control air pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
