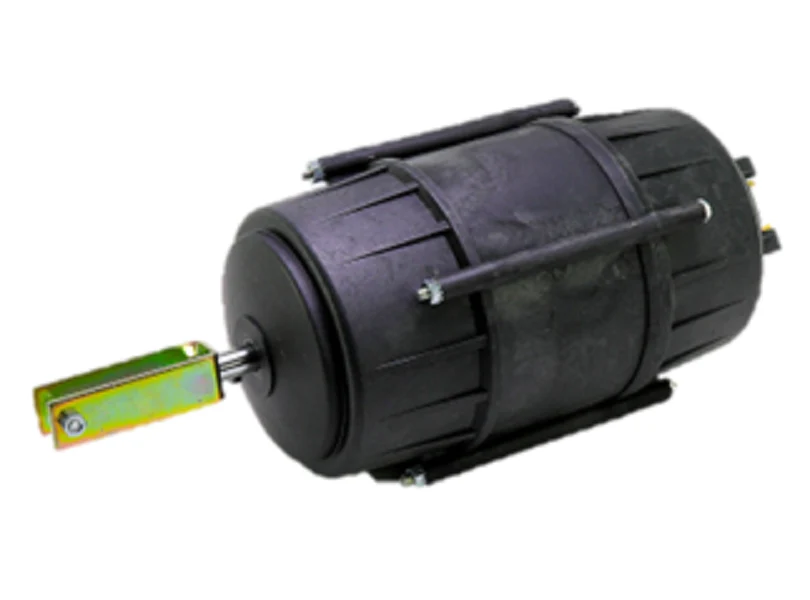

KMC Controls MCP-1160-5104 Actuator
The KMC Controls MCP-1160-5104 is a specialized pneumatic damper actuator designed for the precise positioning of large automatic air control dampers, butterfly valves, and variable fan inlet vanes. Engineered with a robust 6-inch stroke and a heavy-duty 8-13 psi spring range, this unit provides the high-torque return power necessary for industrial-grade HVACR applications. As the direct replacement for the MCP-1160-5102, it ensures seamless integration into existing pneumatic control systems without extensive field modifications. Each assembly includes bracket hardware and a clevis attachment to simplify the installation process, though the bracket can be removed for customized mounting configurations. Constructed with a durable glass-filled nylon body, the MCP-1160-5104 supports both modulating and two-position control. The adjustable linkage allows for a rotation range of 60 to 120 degrees, ensuring compatibility with diverse damper architectures and mission-critical airflow requirements.
Key Benefits
- Versatile Replacement: Serving as the upgraded replacement for MCP-1160-5102, this damper actuator minimizes downtime during system retrofits.
- High Output Performance: The 8-13 psi main spring delivers consistent force for reliable damper closure even in high-pressure environments.
- Complete Setup: Factory-supplied with bracket hardware and clevis, reducing the need for separate parts procurement on the job site.
- Precision Control: Features an adjustable linkage facilitating up to 120 degrees of rotation for exact airflow management.
Common Questions
Is the mounting bracket mandatory for installation?
No, while it comes with bracket hardware, the bracket can be removed if your specific plenum or damper assembly requires a different mounting arrangement.
What type of control signal does this actuator require?
The MCP-1160-5104 operates on standard pneumatic air signals, specifically calibrated for an 8-13# spring range, and is compatible with both modulating and two-position controllers.
Can I use this for butterfly valve applications?
Yes, the MCP-1160 series is technically rated for use with butterfly valves and variable fan inlet vanes in addition to standard HVAC dampers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
