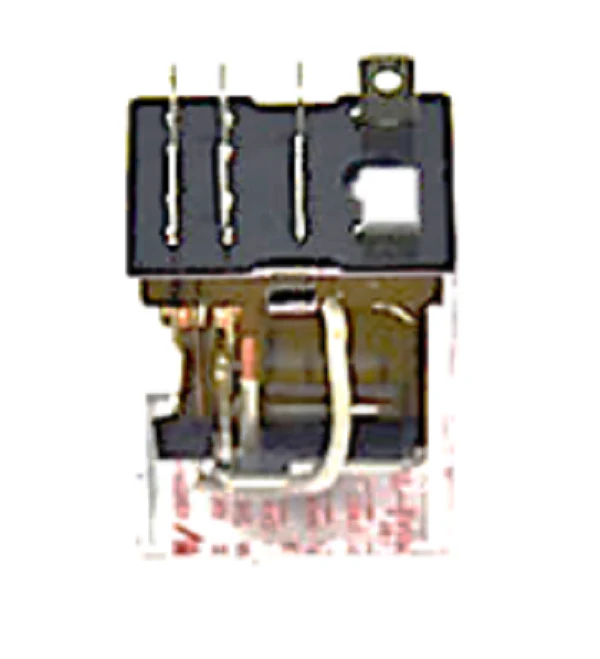

Veris Industries VMD2B-C24A Socket
The Veris Industries VMD2B-C24A Socket is a professional-grade 10A DPDT Socket Relay designed specifically for the rigorous demands of building automation and industrial HVACR control panels. This mechanical "ice cube" style relay utilizes a 24VAC control voltage coil to provide reliable switching across dual-pole, double-throw contacts. Engineered for maximum versatility, the VMD2B-C24A supports 2-way mounting, allowing for seamless installation on standard 35 mm DIN rail systems or direct wall mounting in custom enclosures. With contact ratings of 10A at 120/277VAC and a wide operating temperature range from -40°F to 131°F, this relay ensures precise electrical isolation and dependable performance in high-cycling environmental control applications. The blade-style pins interface securely with compatible VBD2B series sockets, making it a standard choice for technicians managing motor loads and pilot duty circuits.
Key Benefits
- Dual-Pole Versatility: The DPDT contact configuration allows for simultaneous control of two independent circuits, simplifying complex wiring in HVAC control logic.
- Flexible Installation: Features a 2-way mounting system that fits 35mm DIN rails or retrofits into existing panel mounts for faster field service.
- Robust Electrical Rating: Rated for a 10A resistive load, providing the overhead needed for fan motors, dampers, and secondary staging controls.
- Industrial Compliance: Fully certified with UL, CE, and CSA approvals to meet strict building safety codes and engineering specifications.
Common Questions
What is the difference between the C-series and F-series models?
The VMD2B-C (this model) is the standard mechanical relay focused on core switching performance. The F-series includes additional diagnostic features like an LED indicator, flag indicator, and manual override lever for troubleshooting.
Is this socket compatible with 24VDC control circuits?
No, this specific model (VMD2B-C24A) is engineered with a coil designed for 24VAC. Using DC voltage on this AC coil can lead to chatter or failure to latch correctly; ensure your transformer output matches these specifications.
Can I use this to control a small motor?
Yes, the Veris VMD2B-C24A is rated for pilot duty and motor loads up to 1/3 HP at 120VAC. Always verify the Inrush and Locked Rotor Amperage (LRA) of your motor does not exceed the 10A contact rating of the relay.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
