Veris Industries V120 Relay

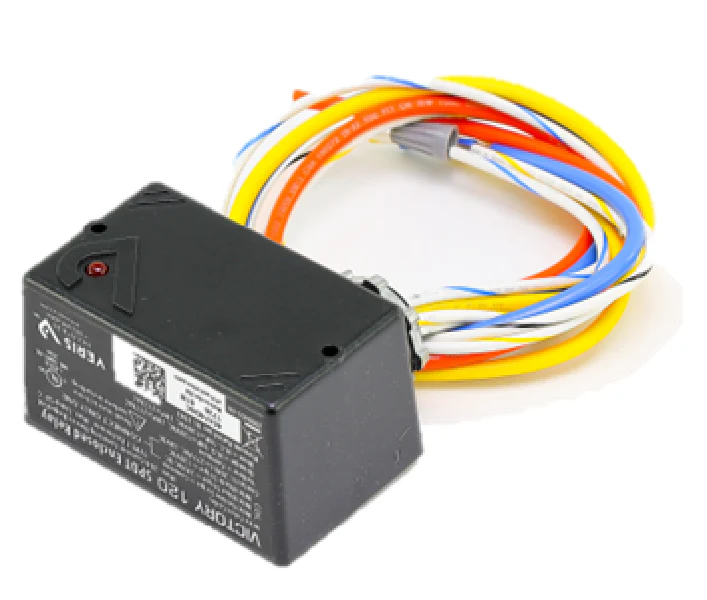

The Veris Industries V120 Victory Series Relay is a high-performance 20A SPDT enclosed relay designed for building automation and industrial control applications. This field-selectable unit features a multi-voltage coil, accepting 24VAC/DC or 120VAC, providing maximum versatility for retrofitting control systems and HVAC motor control. Its sleek, nipple-mount enclosed power relay design integrates directly onto any standard electrical box via a 1/2" NPT nipple, eliminating the need for a dedicated field enclosure and saving valuable panel space.
Built for durability, the Veris V120 is UL 508 Listed and rated for 10 million mechanical cycles. The internal relay supports 20 Amp resistive loads at 277VAC and is specifically rated for fractional HP motor control (1HP @ 120VAC), making it ideal for exhaust fans, pumps, and unit heaters. The unit includes an integrated LED indicator for immediate visual verification of energized status. High-quality 14-inch tinned stranded wire leads (18 AWG for the coil and 12 AWG for contacts) ensure secure, low-resistance connections in tight junction spaces.
Key Benefits for Contractors- Field-Selectable Multi-Voltage Coil: One part number handles 24V or 120V inputs, simplifying truck stock.
- Rapid Nipple-Mount Installation: Mounts directly to conduit knockouts, reducing labor time on retrofit jobs.
- High Load Capacity: Rated for 20A resistive and 1HP motor loads, providing a wide application range.
- Internal LED Status: Simplifies troubleshooting by confirming coil energization at a glance.
- Compact Enclosure: Eliminates the footprint of traditional DIN-rail or panel-mount enclosures.
- Can this relay control a 120V motor? Yes, the Veris V120 is rated for 1HP motor control at 120VAC, suitable for various HVACR fans and blowers.
- How do I wire the 24V coil? Use the white with yellow stripe lead as the coil common and the white with blue stripe lead for 10-30VAC/DC input.
- Is the V120 suitable for outdoor use? This is an enclosed device but must be installed within a suitable NEMA-rated enclosure if subjected to direct weather or moisture.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
