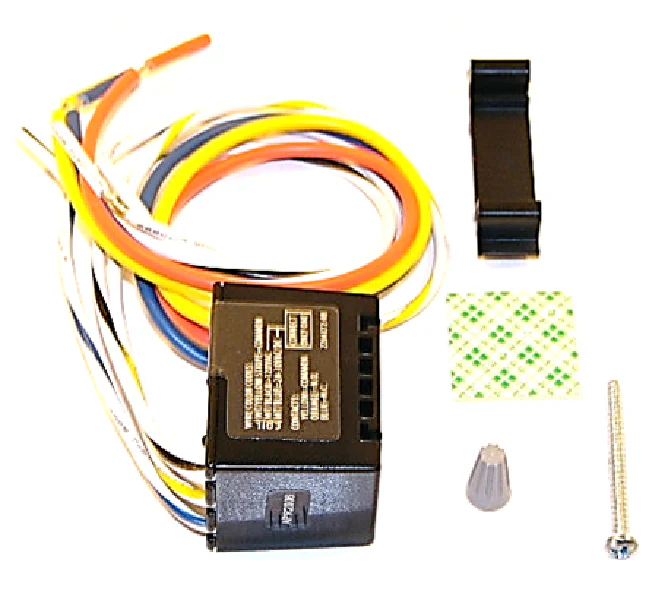

Veris Industries V-645 Relay
The Veris Industries V-645 is a high-performance SPDT enclosed relay within the Victory Series, engineered specifically for building automation systems and HVACR control. As a technical professional, you need a 10A mini command relay that eliminates the guesswork of coil compatibility. This multi-voltage relay accepts 24 to 30 VAC/VDC or 120 VAC coil inputs, providing the field flexibility required for interlocking exhaust fans, lighting circuits, and motor control. Built for high-density relay panel installations, its compact footprint allows for seamless integration into existing enclosures or fixture channels without sacrificing thermal performance, operating reliably between 32 and 140 °F.
Installation is streamlined with UL1015 lead wires, featuring 18 AWG for the multi-voltage coil input and 16 AWG for the high-capacity contacts. The integrated status LED ensures rapid visual diagnostics, confirming when the relay is energized without requiring a multimeter for basic status checks. With an electrical endurance rating of 100,000 cycles at full load, this Veris Industries relay provides the mechanical reliability necessary for critical HVAC voltage monitoring and automation logic. This SPDT relay is a versatile solution for any technician managing complex control sequences in demanding environments.
Key Benefits- Broad Coil Compatibility: Accepts 24-30 VAC/VDC or 120 VAC, reducing the number of SKUs needed on the service truck.
- Superior Switching Capacity: Rated for up to 10 A at 250 VAC, making it suitable for motor loads up to 1/4 HP.
- Advanced Diagnostics: High-visibility LED provides real-time status of the coil’s energized state.
- Compact Enclosure: Designed for DIN rail or wall mounting in tight electrical panels and fixture channels.
- Professional Build: UL listed with mechanical life exceeding 10 million cycles for long-term service stability.
What is the maximum current rating for the V-645 contacts?
The relay supports up to 10 A at 250 VAC (resistive). For inductive loads, it is rated at 7 A at 250 VAC and can handle motor loads up to 1/4 HP at 125 VAC.
Can I use this relay for both AC and DC control circuits?
Yes, the Veris V-645 is designed for flexibility, accepting either 24-30 VAC or 24-30 VDC, as well as 120 VAC on the secondary input.
What wire gauges are used for the V-645 leads?
The unit comes pre-wired with 10-inch leads. The coil uses 18 AWG wire, while the high-voltage contacts utilize 16 AWG wire for improved current handling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $22.84
-65%$22.84
$7.99Veris Industries V-645 Relay
The Veris Industries V-645 is a high-performance SPDT enclosed relay within the Victory Series, engineered specifically for building automation systems and HVACR control. As a technical professional, you need a 10A mini command relay that eliminates the guesswork of coil compatibility. This multi-voltage relay accepts 24 to 30 VAC/VDC or 120 VAC coil inputs, providing the field flexibility required for interlocking exhaust fans, lighting circuits, and motor control. Built for high-density relay panel installations, its compact footprint allows for seamless integration into existing enclosures or fixture channels without sacrificing thermal performance, operating reliably between 32 and 140 °F.
Installation is streamlined with UL1015 lead wires, featuring 18 AWG for the multi-voltage coil input and 16 AWG for the high-capacity contacts. The integrated status LED ensures rapid visual diagnostics, confirming when the relay is energized without requiring a multimeter for basic status checks. With an electrical endurance rating of 100,000 cycles at full load, this Veris Industries relay provides the mechanical reliability necessary for critical HVAC voltage monitoring and automation logic. This SPDT relay is a versatile solution for any technician managing complex control sequences in demanding environments.
Key Benefits- Broad Coil Compatibility: Accepts 24-30 VAC/VDC or 120 VAC, reducing the number of SKUs needed on the service truck.
- Superior Switching Capacity: Rated for up to 10 A at 250 VAC, making it suitable for motor loads up to 1/4 HP.
- Advanced Diagnostics: High-visibility LED provides real-time status of the coil’s energized state.
- Compact Enclosure: Designed for DIN rail or wall mounting in tight electrical panels and fixture channels.
- Professional Build: UL listed with mechanical life exceeding 10 million cycles for long-term service stability.
What is the maximum current rating for the V-645 contacts?
The relay supports up to 10 A at 250 VAC (resistive). For inductive loads, it is rated at 7 A at 250 VAC and can handle motor loads up to 1/4 HP at 125 VAC.
Can I use this relay for both AC and DC control circuits?
Yes, the Veris V-645 is designed for flexibility, accepting either 24-30 VAC or 24-30 VDC, as well as 120 VAC on the secondary input.
What wire gauges are used for the V-645 leads?
The unit comes pre-wired with 10-inch leads. The coil uses 18 AWG wire, while the high-voltage contacts utilize 16 AWG wire for improved current handling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
