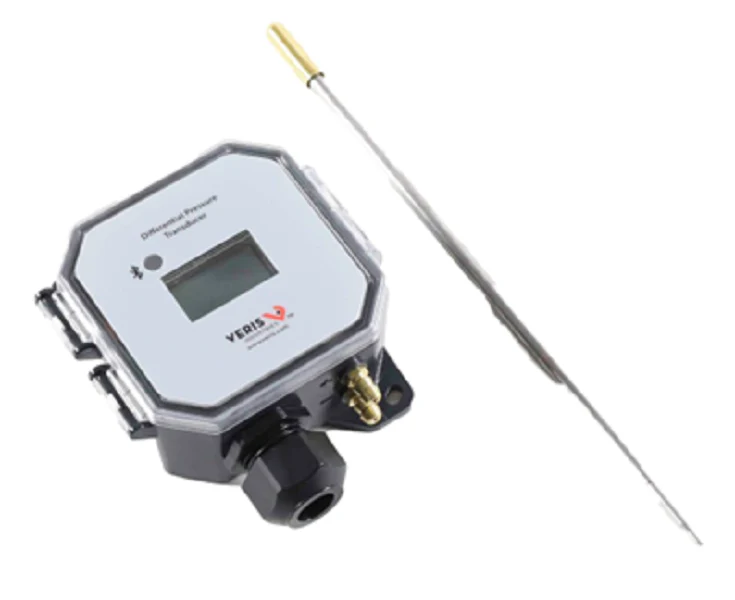

Veris Industries PX3ULN05 Transducer
The Veris Industries PX3ULN05 Transducer is a versatile, high-precision instrument engineered for measuring differential pressure or air velocity in critical HVACR environments. Built with a universal enclosure, this unit offers field-selectable ranges up to 0-10"wc (0-2500 Pa) and velocity scales up to 7,000 ft/min. As a dry media digital pressure transducer, it features an integrated LCD display for immediate local monitoring and utilizes Bluetooth connectivity via the Veris Sensors App, allowing technicians to perform remote configuration without needing a ladder. This NIST certified sensor supports multiple output signals including 4-20mA, 0-5V, and 0-10V, ensuring seamless integration with any Building Automation System (BAS) or PLC. Its rugged IP65/NEMA 4 housing is designed for longevity in demanding mechanical rooms, clean rooms, and hospitals. By incorporating sophisticated temperature compensation and overpressure tolerance, the PX3ULN05 ensures high stability and accuracy, effectively reducing the need for repeated field calibrations and troubleshooting callbacks.
Key Benefits- Field-Selectable Flexibility: Switch between pressure and velocity modes with seven selectable pressure sub-ranges to match specific system requirements.
- Simplified Commissioning: Use the Bluetooth configuration app to set parameters and view live trend logs from your smartphone.
- Enhanced Durability: The IP65/NEMA 4 rated enclosure and brass barb fittings provide superior protection against environmental contaminants and mechanical stress.
- Reliable Integration: Features field-selectable 2-wire (4-20mA) or 3-wire (0-5V/0-10V) outputs for universal compatibility with existing controllers.
- Traceable Accuracy: Comes standard with a 16-point NIST certificate, ensuring high-performance monitoring of duct static pressure and filter status.
The unit features a pushbutton auto-zero and a digital input terminal. Ensure both pressure ports are open to the atmosphere before pressing the zero button for maximum accuracy.
Can this transducer be used for air velocity measurement?Yes, the Veris Industries PX3ULN05 Transducer includes a velocity mode that is easily engaged via a sub-menu or the Bluetooth app, supporting measurements up to 7,000 ft/min when used with the appropriate probe.
What power supply is required for the 3-wire voltage mode?In voltage mode, the unit operates on 24 VAC or 12-30 VDC, providing the flexibility needed for various commercial power configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
