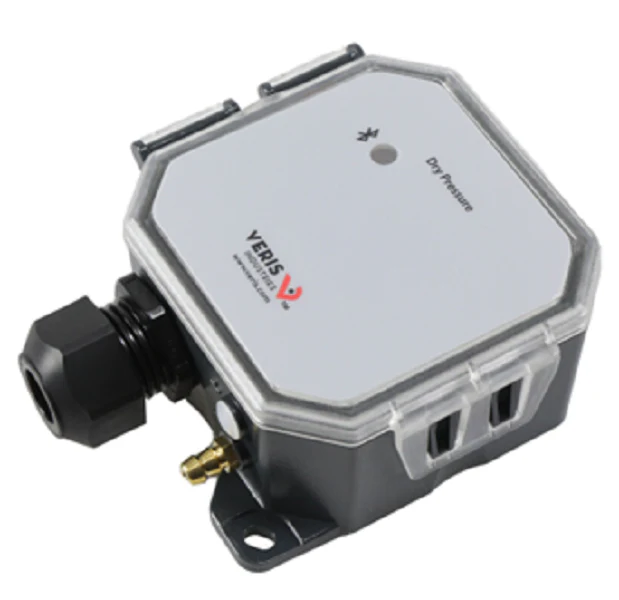

Veris Industries PX3DXX01 Transducer
Effective air management depends on the reliability of your differential pressure monitoring. The Veris Industries PX3DXX01 is a versatile differential pressure transducer designed specifically for duct-mounted applications. This high-performance sensor excels in duct static pressure monitoring and airflow measurement inside commercial HVAC systems. Unlike standard sensors, the PX3DXX01 features a field-selectable switch that allows you to toggle between pressure and velocity modes, making it an essential tool for VAV control systems and building automation. Housed in a durable NEMA 4 enclosure, it is rated for IP65 environments, ensuring performance even in demanding wash-down locations. The unit offers multiple analog output signals including 4-20mA, 0-5VDC, and 0-10VDC, providing seamless compatibility with various controllers. With its integrated Bluetooth technology, contractors can configure field-selectable parameters and sub-ranges directly through the Veris Sensors App, eliminating the need to use ladders for routine adjustments on overhead ductwork.
Key Benefits
- Versatile Operation: Field-selectable between differential pressure and air velocity measurement with a single switch.
- Bluetooth Configuration: Remote parameter adjustment and commissioning via smartphone to reduce labor time.
- Rugged Construction: IP65/NEMA 4 rated housing protects internal electronics from moisture and dust ingress.
- Flexible Integration: Supports multiple 2-wire and 3-wire analog outputs with field-selectable ranges for 0-1" WC.
- Accuracy and Stability: High-reliability sensor technology reduces long-term drift and provides ±1% FS accuracy.
Common Questions
What is the typical application for the Veris PX3DXX01?
This transducer is primarily used for monitoring static pressure in ducts, managing filter status, and providing air velocity feedback for Variable Air Volume (VAV) controllers.
How do I configure the sensor without a display?
You can easily set sub-ranges, output types, and direction (bi-directional vs. unidirectional) using the internal DIP switches or through the Veris Sensors App via Bluetooth.
Is this sensor suitable for outdoor installation?
Yes, the NEMA 4/IP65 enclosure is designed to withstand wash-down and harsh conditions, making it suitable for protected outdoor or high-moisture indoor environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
