Veris Industries PWRLX04S010 Control

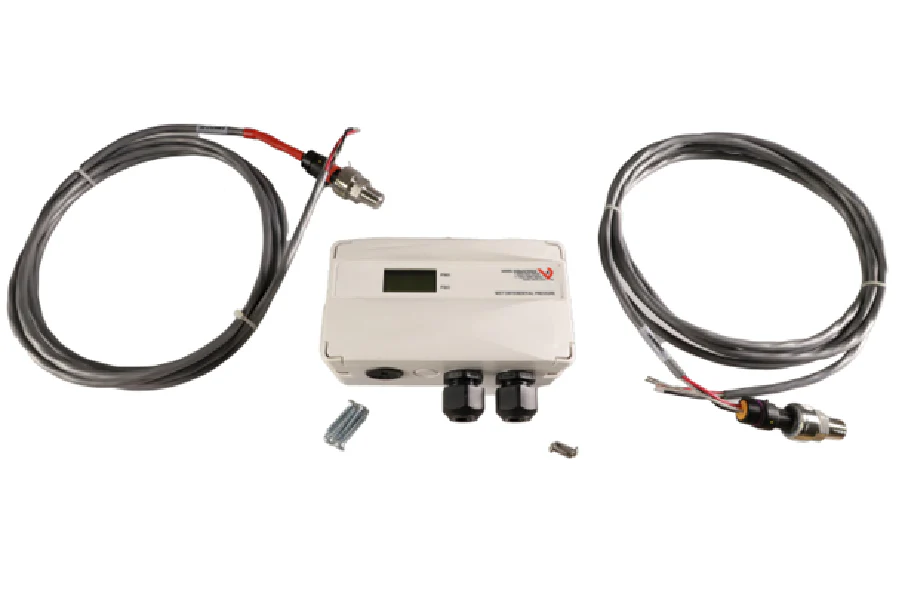

The Veris Industries PWRLX04S010 is a high-performance wet media differential pressure transducer designed for precision monitoring in HVAC and process control systems. Engineered for durability, this 0-100 PSI differential pressure sensor features a remote probe configuration connected by a 10-foot shielded cable, allowing for flexible mounting and isolation from high-temperature or high-vibration piping. Capable of handling wet/wet differential pressure applications, it utilizes advanced piezoresistive sensing technology to deliver a linear 4-20mA output signal, ensuring compatibility with most building automation systems and industrial PLCs. The unit is built to withstand significant overpressure and is NIST traceable for critical balancing and flow measurement tasks. By accurately measuring the pressure drop across chillers, heat exchangers, and pumps, this industrial pressure transmitter enables optimized VFD control and prevents equipment cavitation. The rugged housing and high burst pressure rating make it a reliable choice for technical mechanical rooms where accurate HVAC pressure monitoring is essential for system efficiency.
- Remote Probe Design: Includes a 10-foot cable to facilitate easier installation in tight mechanical spaces while protecting the electronics from direct pipe heat.
- High Precision Sensing: Delivers accurate differential pressure measurement in liquid systems with a standard 4-20mA loop-powered output.
- Robust Fluid Compatibility: Designed for use with water, glycol, and other media compatible with 17-4 PH stainless steel.
- Field Reliability: High burst pressure specs and excellent long-term stability reduce the need for frequent recalibration in the field.
- Simplified Wiring: Two-wire configuration integrates seamlessly into existing BAS architectures for rapid deployment.
Common Technical Questions
What is the maximum line pressure for the PWRLX04S010?
This transducer is designed to handle high static line pressures, typically up to 250 PSI, allowing for accurate differential readings even in high-head pumping applications.
How do I plumb the high and low ports correctly?
The "High" port must be connected to the upstream side of the equipment, and the "Low" port to the downstream side. Reversing these will result in an incorrect or bottomed-out signal.
Can this sensor be used in steam applications?
While rated for wet media, a pigtail siphon or water seal should be used if there is any risk of live steam reaching the sensing element to prevent thermal damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
