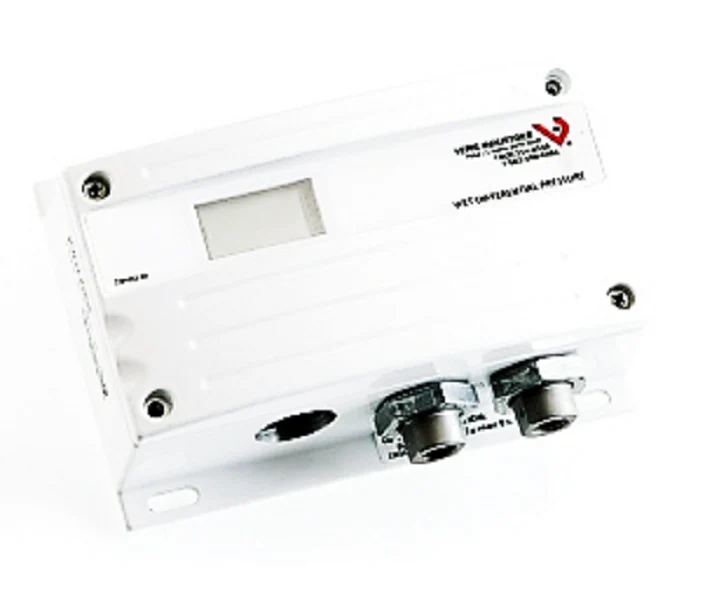

Veris Industries PW2LX05S Control
The Veris Industries PW2LX05S is a high-performance wet/wet differential pressure transducer engineered for precision monitoring in demanding HVACR environments. This 2-wire, 4-20 mA loop-powered transmitter utilizes microprocessor-profiled sensors to deliver an accuracy of ±1% F.S. across its primary ranges. Designed to handle non-corrosive wet media, it features 17-4 PH stainless steel wetted parts, making it ideal for measuring pressure drops across chillers, pumps, heat exchangers, and commercial boiler systems. The integrated LCD provides real-time local diagnostics, while the NEMA 4 rated die-cast aluminum enclosure ensures long-term reliability in mechanical rooms and plant zones. With jumper-selectable pressure scales up to 250 PSID and an electronic surge damping feature, this industrial pressure sensor allows technicians to dial in specific performance parameters without the need for additional bypass valve assemblies.
Key Benefits:
- Dual sensor design enhances overpressure tolerance and eliminates the requirement for costly bypass valve piping in most applications.
- Jumper-selectable port swap allows for electronic correction of reversed high/low plumbing lines, preventing expensive labor re-runs.
- Pushbutton auto-zero calibration and remote zero terminals streamline commissioning and maintenance by removing the need for trim pot adjustments.
- Field-adjustable settings for psid/bard units and normal/reverse analog output provide maximum flexibility for various BAS and PLC integrations.
- Rugged NEMA 4 enclosure with 1/8” NPT female stainless steel fittings provides superior durability in high-vibration and humid environments.
Common Questions:
Does this unit require a 3-valve manifold for installation?
Due to the robust dual sensor architecture, most installations do not require a bypass valve assembly, significantly reducing the total installed cost and complexity.
What media is compatible with the PW2LX05S?
The unit is compatible with liquids and gases that are non-corrosive to 17-4 PH stainless steel, common in hydronic heating and cooling systems.
Can the output be reversed if the plumbing is backward?
Yes, the PW2LX05S features a jumper-selectable port swap and an analog reverse switch, allowing you to correct orientation issues electronically without re-piping.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
