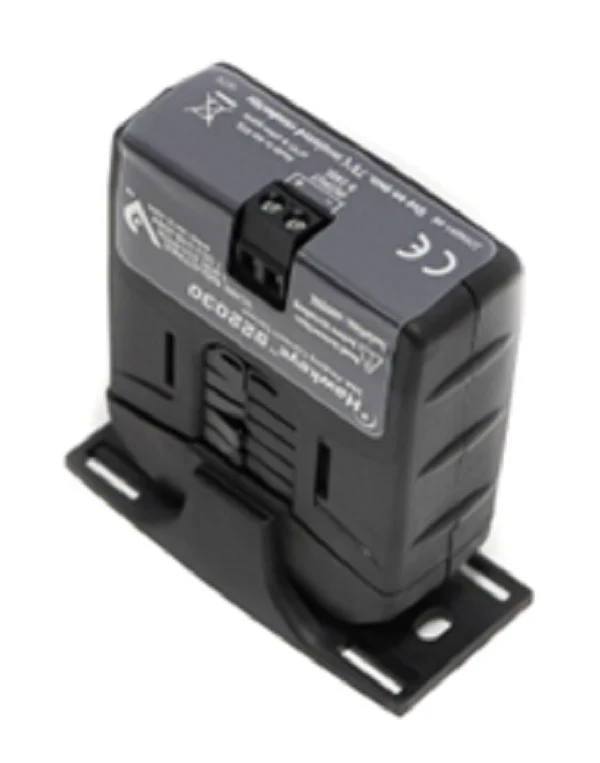

Veris Industries H922030A Transducer
The Veris Industries H922030A is a professional-grade split-core current transducer engineered for precise AC current monitoring in building automation and motor control environments. Built for high-reliability load trending, this Hawkeye current sensor provides a linear 0-5VDC analog output directly proportional to the sensed AC amperage. With a monitored current range of 0-30A, it is an ideal solution for tracking fan and pump status or verifying positive proof of flow in HVACR systems. The split-core design allows for rapid retrofit installation on existing electrical services without the need to disconnect conductors, significantly reducing labor time on the job site. This self-powered transducer eliminates the need for an external power supply by inducing operating energy directly from the monitored line, simplifying wire runs to the controller. High-accuracy analog current monitoring is further supported by a factory-calibrated signal, ensuring dependable data for energy management systems and industrial PLC integrations.
Key Benefits- Split-core architecture allows for non-invasive installation on up to 0.8-inch diameter insulated conductors.
- Self-powered operation reduces installation complexity and point-of-failure by removing the need for auxiliary power.
- Delivers a precise 0-5VDC output, ensuring seamless compatibility with standard building automation system (BAS) analog inputs.
- Retrofit-friendly design features a self-gripping mechanism for secure mounting in tight electrical enclosures.
- Optimized for HVAC motor status monitoring and detecting belt loss or mechanical failure in industrial equipment.
Is the 0-5VDC output compatible with my 24V loop?
The H922030A provides a 0-5VDC voltage signal, not a 4-20mA current loop. Ensure your controller is scaled for a voltage input; if you require a current loop signal, you should specify the H921 model instead.
Can I monitor a load smaller than 3 Amps accurately?
While the H922030A is rated for 0-30A, accuracy is typically ±2% above 3A. For very low amperage loads, you can wrap the monitored conductor through the sensor window multiple times to "multiply" the signal seen by the transducer.
Does this sensor require a separate transformer for power?
No, this unit is completely self-powered via induction from the monitored AC line, which simplifies the wiring footprint in your panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $62.10
-65%$62.10
$21.73Veris Industries H922030A Transducer
The Veris Industries H922030A is a professional-grade split-core current transducer engineered for precise AC current monitoring in building automation and motor control environments. Built for high-reliability load trending, this Hawkeye current sensor provides a linear 0-5VDC analog output directly proportional to the sensed AC amperage. With a monitored current range of 0-30A, it is an ideal solution for tracking fan and pump status or verifying positive proof of flow in HVACR systems. The split-core design allows for rapid retrofit installation on existing electrical services without the need to disconnect conductors, significantly reducing labor time on the job site. This self-powered transducer eliminates the need for an external power supply by inducing operating energy directly from the monitored line, simplifying wire runs to the controller. High-accuracy analog current monitoring is further supported by a factory-calibrated signal, ensuring dependable data for energy management systems and industrial PLC integrations.
Key Benefits- Split-core architecture allows for non-invasive installation on up to 0.8-inch diameter insulated conductors.
- Self-powered operation reduces installation complexity and point-of-failure by removing the need for auxiliary power.
- Delivers a precise 0-5VDC output, ensuring seamless compatibility with standard building automation system (BAS) analog inputs.
- Retrofit-friendly design features a self-gripping mechanism for secure mounting in tight electrical enclosures.
- Optimized for HVAC motor status monitoring and detecting belt loss or mechanical failure in industrial equipment.
Is the 0-5VDC output compatible with my 24V loop?
The H922030A provides a 0-5VDC voltage signal, not a 4-20mA current loop. Ensure your controller is scaled for a voltage input; if you require a current loop signal, you should specify the H921 model instead.
Can I monitor a load smaller than 3 Amps accurately?
While the H922030A is rated for 0-30A, accuracy is typically ±2% above 3A. For very low amperage loads, you can wrap the monitored conductor through the sensor window multiple times to "multiply" the signal seen by the transducer.
Does this sensor require a separate transformer for power?
No, this unit is completely self-powered via induction from the monitored AC line, which simplifies the wiring footprint in your panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
