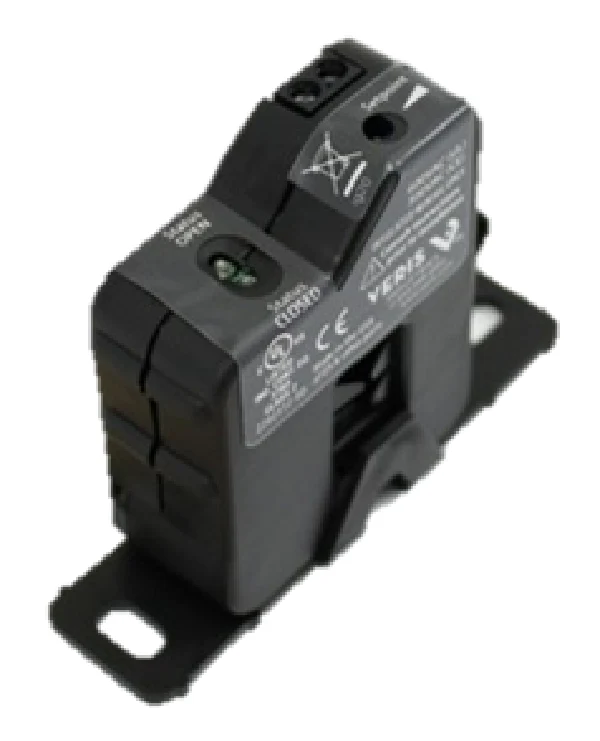

Veris Industries H-606 Switch
The Veris H-606 is a high-performance adjustable trip point current switch designed for precision monitoring of AC motor loads in commercial HVACR environments. Engineered with a solid-core housing, this current status sensor provides a reliable N.O. solid-state output to detect belt loss, coupling shear, or mechanical motor failure. With a setpoint range of 1.25 to 50 Amps, the H-606 allows technicians to fine-tune the switching threshold via a multi-turn potentiometer, ensuring accurate undercurrent and overcurrent detection even in variable load applications. The unit is induced-powered from the monitored line, eliminating the need for external power supplies and simplifying BAS (Building Automation System) integration. Its compact form factor is ideal for motor control centers and tight electrical panels where real-time motor status monitoring is critical for preventing equipment downtime. This switch is rated for continuous operation up to 200A on the monitored line, providing a rugged solution for tracking fan and pump status in demanding industrial service cycles.
Key Benefits for Contractors:- Adjustable Trip Point: Enables precise current monitoring between 1.25A and 50A to differentiate between a motor running under load and an idling motor.
- Self-Powered Design: High-efficiency induced power circuit reduces wiring complexity and installation time.
- Solid-State Output: Provides a durable digital output for seamless interfacing with PLCs and DDC controllers.
- Solid-Core Reliability: Ensures long-term signal stability and magnetic sensing accuracy without the mechanical wear of traditional relays.
- Simplified Calibration: Features an onboard LED for visual trip point status, allowing for fast setup during commissioning.
How do I set the trip point on the H-606?
With the motor running at normal load, turn the adjustment potentiometer clockwise until the LED turns off, then turn it counter-clockwise until the LED lights up. This establishes the switching threshold for reliable operation.
Can this switch be used on VFD applications?
The H-606 is optimized for constant frequency applications; however, it can be used on the line side of a Variable Frequency Drive to monitor total motor current, provided the frequency remains within the rated range.
What happens if the motor current exceeds 50A?
The 50A rating refers to the adjustable trip range. The switch can safely handle a continuous monitored current of up to 200A through the sensing core without damaging the electronics.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
