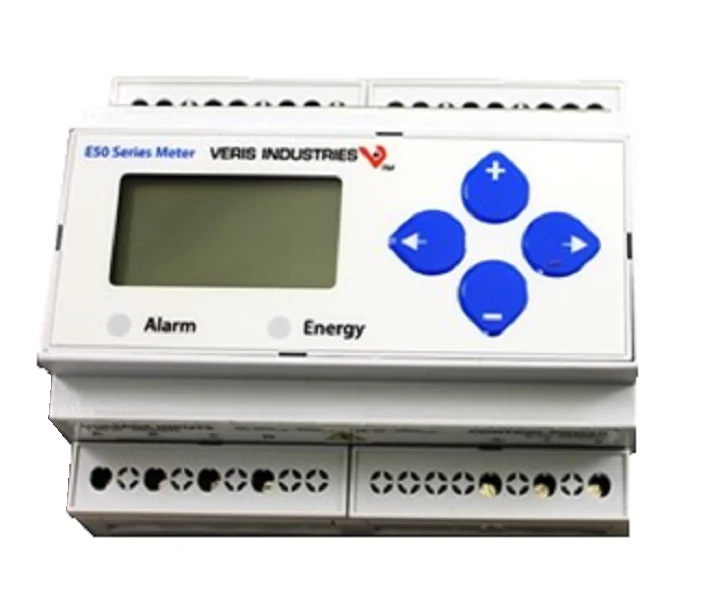

Veris Industries E50H5A Data Logger
For facility managers and electrical contractors requiring precision energy monitoring, the Veris Industries E50H5A BACnet Data Logger provides a robust, DIN-rail mounted solution for 3-phase power measurement. This unit is engineered with integrated CT power supplies and integrators, designed specifically for seamless compatibility with Veris U018 series rope-style CTs. The E50H5A supports high-accuracy real power and energy metering (ANSI C12.20 0.5% Class 0.5S), ensuring reliable data for cost allocation and sub-metering applications. With native BACnet MS/TP support and RS-485 serial communication, it integrates directly into building automation systems without the need for external gateways. The onboard data logging feature secures critical measurement records in non-volatile memory, protecting your trend logs during communication disruptions. Built to operate in demanding environments from -30°C to 70°C, this energy meter features a high-visibility backlit LCD for real-time diagnostics and simplifies commercial submetering with two pulse contact inputs for tracking additional utilities.
Key Benefits- Universal Compatibility: Specifically designed for 20A to 5000A U018 rope style CTs to fit tight enclosures and irregular busbars.
- High-Speed Communication: Native BACnet MS/TP protocol support with baud rates up to 115,200 for rapid system response.
- Integrated Data Logging: Internal memory stores up to 60 days of measurement records at 15-minute intervals.
- Versatile Voltage Support: Monitors systems from 90V L-N up to 600V L-L, suitable for Wye and Delta configurations.
- Contractor Friendly: DIN-rail mountable with no sensitivity to CT orientation, significantly reducing installation labor and error risk.
Does the E50H5A require a separate power supply for the CTs?
No. This model features a built-in integrator and power supply, which is necessary for the Veris U018 rope CTs to function correctly.
What system types can this meter monitor?
The unit is configurable for Single Phase (AN or AB), Split Phase (ABN), Delta (ABC), and Wye (ABCN) electrical systems.
Can I use standard 0.333V CTs with this specific model?
The E50H5A is designed exclusively for Veris U018 series rope style CTs. Attempting to use standard solid-core or split-core CTs without the proper internal matching can lead to inaccurate measurements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
