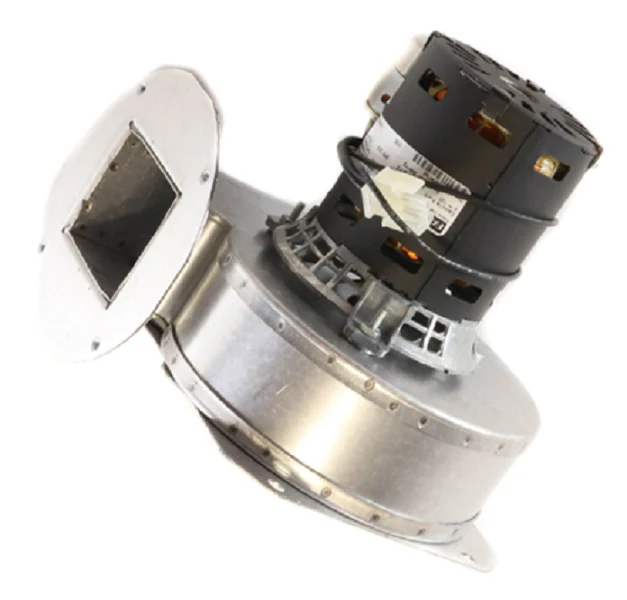

Velocity Boiler Works (Crown) 620001 Inducer Assembly
The Velocity Boiler Works (Crown) 620001 Inducer Assembly is a critical 120V inducer motor component designed for precise flue gas evacuation in residential and commercial boiler platforms. This OEM replacement part serves as a direct-fit solution for maintaining the pressure differential required by the boiler pressure switch to initiate the ignition sequence. Operating on a standard single-phase 120VAC supply, the 1/20 HP permanent split capacitor motor draws approximately 1.35 Amps, balancing high-static pressure performance with low electrical consumption. Built with a corrosion-resistant galvanized steel housing, the assembly ensures the safe purging of combustion byproducts from the heat exchanger, preventing boiler soft lockout errors caused by inadequate draft. For technicians servicing Crown or Velocity hydronic systems, this centrifugal draft inducer is the standard for restoring reliable venting across a wide temperature range of -20°F to 150°F. When troubleshooting noisy inducer motor issues or faulty draft inducer blowers, installing this complete assembly avoids the common headaches associated with seized wheel removal from rusted shafts.
Key Benefits- Optimized Combustion Safety: Effectively purges heat exchanger gases to ensure safe burner ignition and continuous operation.
- Direct OEM Compatibility: Specifically engineered as a drop-in 620001 replacement for Velocity and Crown boiler systems, ensuring exact mounting alignments.
- Durable Construction: Heavy-duty metal housing and a rubberized base provide structural stability and vibration damping for quieter operation.
- Energy-Efficient Performance: Low-amperage 1.35A draw minimizes operational costs while delivering consistent airflow.
- Simplified Serviceability: Selling as a complete assembly allows for faster field replacement compared to individual motor-and-wheel swaps.
Is this inducer assembly compatible with 240V systems?
No, this is a 120v Inducer Assy. Always verify the voltage on the existing motor's nameplate before installation to prevent electrical failure.
What are the signs that my current 620001 inducer needs replacement?
Common indicators include a rattling or humming noise from the motor bearings, a "fail to ignite" error code on the boiler control, or the motor failing to spin despite receiving a 120V call for heat.
Does this assembly include a new gasket?
Technicians should always inspect the interface between the inducer and the collector box; if a new gasket is not included, high-temp RTV silicone is recommended to maintain a gastight seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $404.41
-65%$404.41
$141.54Velocity Boiler Works (Crown) 620001 Inducer Assembly
The Velocity Boiler Works (Crown) 620001 Inducer Assembly is a critical 120V inducer motor component designed for precise flue gas evacuation in residential and commercial boiler platforms. This OEM replacement part serves as a direct-fit solution for maintaining the pressure differential required by the boiler pressure switch to initiate the ignition sequence. Operating on a standard single-phase 120VAC supply, the 1/20 HP permanent split capacitor motor draws approximately 1.35 Amps, balancing high-static pressure performance with low electrical consumption. Built with a corrosion-resistant galvanized steel housing, the assembly ensures the safe purging of combustion byproducts from the heat exchanger, preventing boiler soft lockout errors caused by inadequate draft. For technicians servicing Crown or Velocity hydronic systems, this centrifugal draft inducer is the standard for restoring reliable venting across a wide temperature range of -20°F to 150°F. When troubleshooting noisy inducer motor issues or faulty draft inducer blowers, installing this complete assembly avoids the common headaches associated with seized wheel removal from rusted shafts.
Key Benefits- Optimized Combustion Safety: Effectively purges heat exchanger gases to ensure safe burner ignition and continuous operation.
- Direct OEM Compatibility: Specifically engineered as a drop-in 620001 replacement for Velocity and Crown boiler systems, ensuring exact mounting alignments.
- Durable Construction: Heavy-duty metal housing and a rubberized base provide structural stability and vibration damping for quieter operation.
- Energy-Efficient Performance: Low-amperage 1.35A draw minimizes operational costs while delivering consistent airflow.
- Simplified Serviceability: Selling as a complete assembly allows for faster field replacement compared to individual motor-and-wheel swaps.
Is this inducer assembly compatible with 240V systems?
No, this is a 120v Inducer Assy. Always verify the voltage on the existing motor's nameplate before installation to prevent electrical failure.
What are the signs that my current 620001 inducer needs replacement?
Common indicators include a rattling or humming noise from the motor bearings, a "fail to ignite" error code on the boiler control, or the motor failing to spin despite receiving a 120V call for heat.
Does this assembly include a new gasket?
Technicians should always inspect the interface between the inducer and the collector box; if a new gasket is not included, high-temp RTV silicone is recommended to maintain a gastight seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
