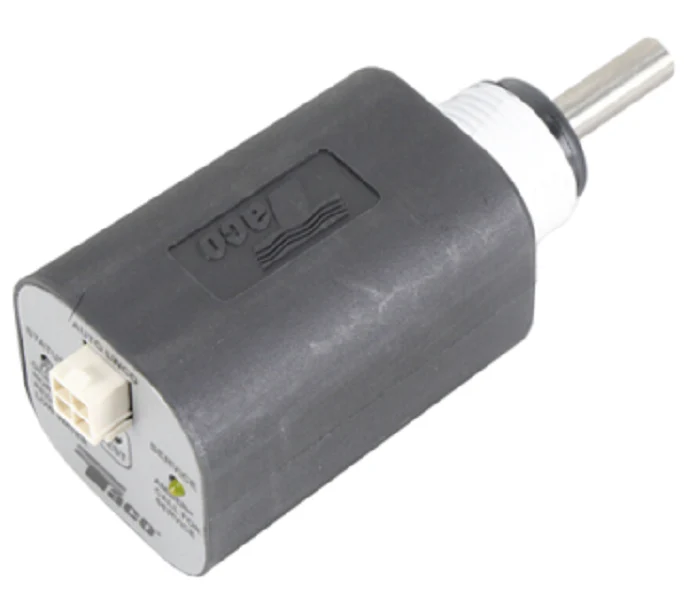

Velocity Boiler Works (Crown) 450601 Low Water Cut-Off
The Velocity Boiler Works (Crown) 450601 Low Water Cut-Off is a mission-critical safety component designed for residential hot water boilers. Engineered for 24VAC systems, this LWCO primary control utilizes advanced probe-style sensing to monitor the boiler’s fluid levels without the need for mechanical floats. With a 3/4-inch NPT process connection and automatic reset logic, it ensures the burner circuit is de-energized immediately if water levels drop below the 1-inch short probe, preventing catastrophic dry-firing and heat exchanger damage. This OEM Velocity Boiler part features a max pressure rating of 160 psi and is rated for water temperatures up to 250°F.
Technicians will find the plug-and-play installation straightforward, as it integrates seamlessly with standard wiring harnesses and features built-in LED indicators for real-time status updates on power, low water, and service requirements. The integrated test button allows for quick verification of the relay's operation and burner circuit interruption during routine maintenance. By eliminating moving parts, this probe-style control minimizes sediment interference and maintenance overhead, providing a reliable HVAC safety switch solution for modern hydronic heating systems.
Key Benefits- Automatic Reset Functionality: Restores boiler operation automatically once safe water levels are detected, reducing unnecessary service calls.
- Diagnostic LED Interface: Provides instant visual confirmation of Low H2O, Power, and Service status for rapid troubleshooting.
- Maintenance-Free Design: The solid-state electronic probe eliminates the mechanical failures associated with traditional float-style controls.
- Direct Boiler Mounting: Compact 1-inch probe length is optimized for standard boiler tappings, ensuring accurate sensing in tight manifolds.
- Enhanced System Protection: Protects high-efficiency cast iron and aluminum heat exchangers from thermal stress caused by low-water conditions.
1. Can this LWCO be used on steam boiler applications?
No, this specific model (450601/LTR0243) is designed for hot water boilers. For steam applications, a control with a burner off-delay is typically required to manage surging and priming.
2. How do I test the circuit without draining the entire system?
You can utilize the onboard test button. Pressing this button breaks the burner circuit to verify that the boiler shuts down, confirming the control is communicating correctly with the aquastat or integrated boiler control.
3. Is this a direct replacement for an RB-24 model?
Yes, the 450601 is functionally equivalent to the RB-24 series used in many Velocity and Crown boiler configurations. Always verify the voltage requirements (24VAC) and probe style (3/4" NPT) before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
