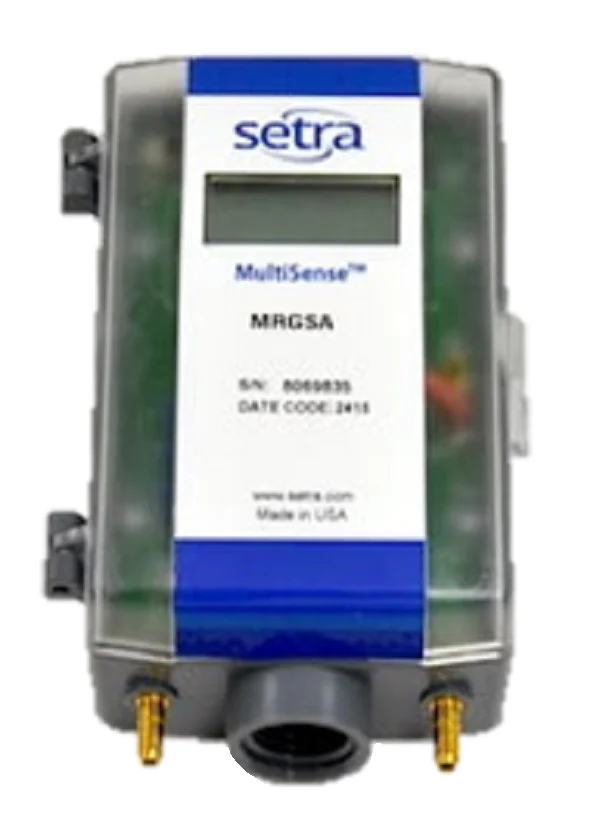

Setra MRGSA Pressure Transducer
The Setra MRGSA Multi-Range General Pressure Transducer is a versatile, high-performance solution designed for installers who require a single SKU to cover a broad spectrum of HVACR applications. This differential pressure sensor features eight field-selectable ranges, spanning from 0.5" W.C. to 5.0" W.C. in both unidirectional and bidirectional modes. Engineered with Setra’s proprietary capacitive sensing technology and a stainless steel diaphragm, it delivers a precise ±1.0% full-scale accuracy while maintaining long-term stability in low-pressure environments. The IP67-rated housing and integrated 1/2" conduit electrical fitting ensure a durable, wash-down-capable installation suitable for mechanical rooms and demanding industrial settings. With selectable outputs (4-20 mA, 0-5 VDC, 0-10 VDC) and a clear 4-digit LCD, this unit provides immediate on-site configuration, reducing the need for multiple replacement parts in technician inventories.
Key Benefits for Technicians:- Field-Selectable Versatility: Adjust between 8 ranges (0.5, 1.0, 2.5, and 5.0" W.C.) and multiple outputs with a simple jumper configuration.
- Rugged Build Quality: The NEMA 4 / IP67 enclosure and 17-4 PH stainless steel wetted parts provide superior protection against environmental contaminants.
- Simplified Calibration: Features push-button zero and span adjustments accessible directly on the unit for fast commissioning in the field.
- High Compatibility: Designed for use with air or inert dry gases, making it ideal for variable air volume (VAV) systems and filter status monitoring.
How do I switch between Pascal and Inches of Water Column?
The engineering units are field-selectable via the internal jumper settings, allowing you to toggle between W.C. and Pa (up to 1,000 Pa) during the initial transducer setup.
Is this unit suitable for outdoor or wash-down environments?
Yes, the Setra MRGSA features a robust IP67-rated polycarbonate housing with a gasketed hinged door, specifically designed for wash-down applications and high-humidity areas.
Can I use this for both 2-wire and 3-wire systems?
Absolutely. The unit supports 4-20 mA current loops (2-wire) and 0-5/10 VDC voltage outputs (3-wire), providing maximum flexibility for various BMS and controller inputs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $238.91
-65%$238.91
$83.62Setra MRGSA Pressure Transducer
The Setra MRGSA Multi-Range General Pressure Transducer is a versatile, high-performance solution designed for installers who require a single SKU to cover a broad spectrum of HVACR applications. This differential pressure sensor features eight field-selectable ranges, spanning from 0.5" W.C. to 5.0" W.C. in both unidirectional and bidirectional modes. Engineered with Setra’s proprietary capacitive sensing technology and a stainless steel diaphragm, it delivers a precise ±1.0% full-scale accuracy while maintaining long-term stability in low-pressure environments. The IP67-rated housing and integrated 1/2" conduit electrical fitting ensure a durable, wash-down-capable installation suitable for mechanical rooms and demanding industrial settings. With selectable outputs (4-20 mA, 0-5 VDC, 0-10 VDC) and a clear 4-digit LCD, this unit provides immediate on-site configuration, reducing the need for multiple replacement parts in technician inventories.
Key Benefits for Technicians:- Field-Selectable Versatility: Adjust between 8 ranges (0.5, 1.0, 2.5, and 5.0" W.C.) and multiple outputs with a simple jumper configuration.
- Rugged Build Quality: The NEMA 4 / IP67 enclosure and 17-4 PH stainless steel wetted parts provide superior protection against environmental contaminants.
- Simplified Calibration: Features push-button zero and span adjustments accessible directly on the unit for fast commissioning in the field.
- High Compatibility: Designed for use with air or inert dry gases, making it ideal for variable air volume (VAV) systems and filter status monitoring.
How do I switch between Pascal and Inches of Water Column?
The engineering units are field-selectable via the internal jumper settings, allowing you to toggle between W.C. and Pa (up to 1,000 Pa) during the initial transducer setup.
Is this unit suitable for outdoor or wash-down environments?
Yes, the Setra MRGSA features a robust IP67-rated polycarbonate housing with a gasketed hinged door, specifically designed for wash-down applications and high-humidity areas.
Can I use this for both 2-wire and 3-wire systems?
Absolutely. The unit supports 4-20 mA current loops (2-wire) and 0-5/10 VDC voltage outputs (3-wire), providing maximum flexibility for various BMS and controller inputs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
