Setra 26512R5WDACT1C Pressure Transducer

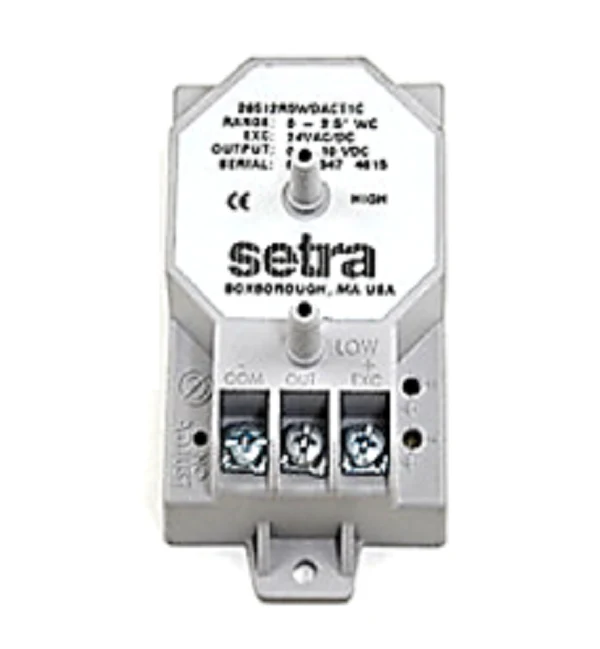

The Setra 26512R5WDACT1C is a professional-grade low differential pressure transducer engineered for high-accuracy sensing in commercial HVAC and VAV air-control systems. This unidirectional unit measures a 0 to 2.5" WC range (Inches of Water Column), utilizing Setra's proprietary stainless steel capacitive sensing element to ensure long-term stability and minimal signal drift. Optimized for modern energy management systems, it operates on a standard 24 VAC excitation and provides a precise 0-10 VDC output signal. The ±1% FS accuracy rating improves performance in variable air volume applications by providing the sensitivity required for duct static and cleanroom monitoring. Designed for field technicians, the terminal strip electrical termination and integral mounting tabs simplify installation in air handlers or control panels. The fire-retardant, UL 94 V-0 approved enclosure ensures full compliance for plenum installations, while reverse wiring protection prevents board damage during commissioning.
Key Benefits:- Enhanced Stability: The all-stainless steel capacitive sensor is designed for high field-acceptance and reliability in non-conducting gas or air media.
- Efficient Integration: Features 0 to 10 VDC output for seamless communication with DDC and building automation platforms.
- Safe Design: Includes reverse wiring protection and a fire-retardant case suitable for plenum air spaces.
- Accurate Calibration: Factory-calibrated with ±1% Full Scale accuracy to support precise airflow control and building pressurization.
- Contractor-Friendly: Equipped with an accessible terminal strip and 3/16" OD pressure ports for standard tubing connections.
- Can this unit be used for liquid pressure sensing? No, this transducer is rated for inert dry air or similar non-conducting gases only.
- Does it require a specific mounting orientation? While calibrated for vertical mounting, it is highly resistant to orientation effects, though re-zeroing is recommended after installation if mounted horizontally.
- What prevents the sensor from burning out during a wiring error? The unit is fully protected against reverse wiring to prevent circuit damage during field wiring.
