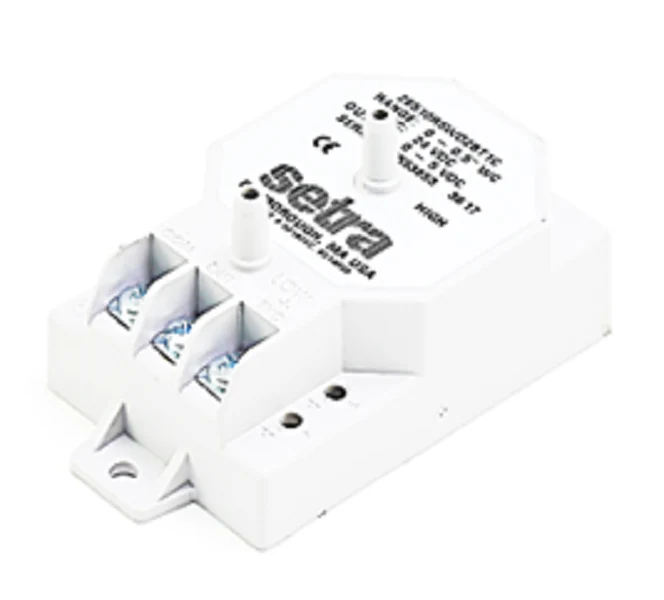

Setra 26510R5WD2BT1C Pressure Transducer
The Setra 26510R5WD2BT1C is a high-performance low differential pressure transducer specifically engineered for critical HVAC and energy management applications. Operating within a 0 to 0.5" WC unidirectional pressure range, this unit utilizes an all-stainless steel micro-tig welded capacitive sensing element. This capacitive pressure sensor design ensures superior stability and resistance to environmental shifts, delivering a standard ±1% FS accuracy. The 265 series is a staple for technicians managing VAV (Variable Air Volume) control, cleanroom pressurization, and static duct pressure monitoring where precise airflow regulation is non-negotiable.
This model is configured with a 24 VDC excitation and provides a linear 0 to 5 VDC output signal, making it natively compatible with most building automation systems and industrial controllers. The terminal strip electrical connection facilitates straightforward field wiring, while the compact, fire-retardant (UL 94 V-0) housing allows for versatile mounting in crowded control panels or plenums. With internal regulation and reverse wiring protection, the 26510R5WD2BT1C is built to withstand the rigors of professional installation without compromising signal integrity.
Key Benefits- Enhanced System Accuracy: The ±1% full-scale accuracy is optimized for low differential pressure environments, improving overall building air balance.
- Rugged Sensor Construction: Features a dead-ended capacitive cell that handles overpressure up to 10 PSI without permanent shift or damage.
- Streamlined Installation: Designed with integral mounting tabs and a terminal strip for fast, secure termination by HVAC contractors.
- Broad Compatibility: The standard 0-5V pressure transducer output integrates seamlessly into various Energy Management Systems (EMS).
- Can this transducer be used for liquid media? No, this unit is designed strictly for air or non-conducting inert gases.
- What are the primary applications for a 0.5" WC range? This range is ideal for monitoring pressure drops across filter banks, static duct pressure, and VAV box performance.
- Is the unit protected against incorrect wiring? Yes, the internal circuitry is fully protected against reverse polarity to prevent damage during the commissioning phase.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $186.48
-65%$186.48
$65.27Setra 26510R5WD2BT1C Pressure Transducer
