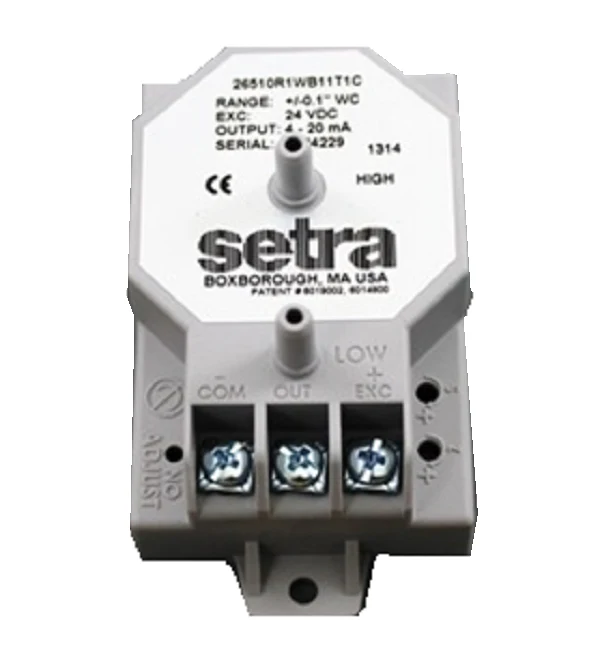

Setra 26510R1WB11T1C Pressure Transducer
The Setra 26510R1WB11T1C is a professional-grade low differential pressure transducer designed for precision air monitoring in critical HVAC systems. Featuring a ±0.1" WC bidirectional pressure range, this unit is engineered for VAV (Variable Air Volume) control, duct static pressure monitoring, and cleanroom environmental management. It utilizes Setra’s signature capacitive sensing element with a micro-tig welded stainless steel diaphragm, ensuring high sensitivity and long-term stability even in demanding commercial applications. The 24 VDC excitation drives a linear 4 to 20 mA output, providing reliable feedback for building automation systems (BAS). Housed in a fire-retardant UL 94 V-0 case, the device includes a terminal strip for secure field wiring and ±1% FS accuracy to maintain optimal airflow performance. Its compact footprint and 3/16" OD pressure fittings make it a standard choice for contractors requiring a robust HVAC pressure sensor with minimal thermal drift.
Key Benefits- Precision Airflow Control: The ±0.1" WC range is ideal for maintaining tight pressure tolerances in VAV systems and air handlers.
- Rugged Construction: Built with an all-stainless steel element that provides excellent overpressure protection up to 10 PSI.
- Simplified Wiring: Features an accessible terminal strip for 2-wire loop-powered installations, reducing labor time during field setup.
- Bi-Directional Measurement: Capable of sensing both positive and negative pressure, offering flexibility for complex ductwork configurations.
- High Stability: The dead-ended capacitive sensor design minimizes hysteresis and ensures ±1% full scale accuracy.
Can the Setra 26510R1WB11T1C be used with liquids?
No, this transducer is specifically designed for use with inert dry air or non-corrosive, non-conducting gases only. Liquid contact will damage the internal capacitive sensor.
Is the zero point adjustable in the field?
Yes, the unit features accessible Zero and Span trim potentiometers, allowing technicians to fine-tune the output after installation to account for varying mounting positions.
What is the maximum overpressure this unit can handle?
This model is rated for a maximum overpressure (burst) of up to 10 psid, protecting the diaphragm during sudden system surges.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $186.48
-65%$186.48
$65.27Setra 26510R1WB11T1C Pressure Transducer
The Setra 26510R1WB11T1C is a professional-grade low differential pressure transducer designed for precision air monitoring in critical HVAC systems. Featuring a ±0.1" WC bidirectional pressure range, this unit is engineered for VAV (Variable Air Volume) control, duct static pressure monitoring, and cleanroom environmental management. It utilizes Setra’s signature capacitive sensing element with a micro-tig welded stainless steel diaphragm, ensuring high sensitivity and long-term stability even in demanding commercial applications. The 24 VDC excitation drives a linear 4 to 20 mA output, providing reliable feedback for building automation systems (BAS). Housed in a fire-retardant UL 94 V-0 case, the device includes a terminal strip for secure field wiring and ±1% FS accuracy to maintain optimal airflow performance. Its compact footprint and 3/16" OD pressure fittings make it a standard choice for contractors requiring a robust HVAC pressure sensor with minimal thermal drift.
Key Benefits- Precision Airflow Control: The ±0.1" WC range is ideal for maintaining tight pressure tolerances in VAV systems and air handlers.
- Rugged Construction: Built with an all-stainless steel element that provides excellent overpressure protection up to 10 PSI.
- Simplified Wiring: Features an accessible terminal strip for 2-wire loop-powered installations, reducing labor time during field setup.
- Bi-Directional Measurement: Capable of sensing both positive and negative pressure, offering flexibility for complex ductwork configurations.
- High Stability: The dead-ended capacitive sensor design minimizes hysteresis and ensures ±1% full scale accuracy.
Can the Setra 26510R1WB11T1C be used with liquids?
No, this transducer is specifically designed for use with inert dry air or non-corrosive, non-conducting gases only. Liquid contact will damage the internal capacitive sensor.
Is the zero point adjustable in the field?
Yes, the unit features accessible Zero and Span trim potentiometers, allowing technicians to fine-tune the output after installation to account for varying mounting positions.
What is the maximum overpressure this unit can handle?
This model is rated for a maximum overpressure (burst) of up to 10 psid, protecting the diaphragm during sudden system surges.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
