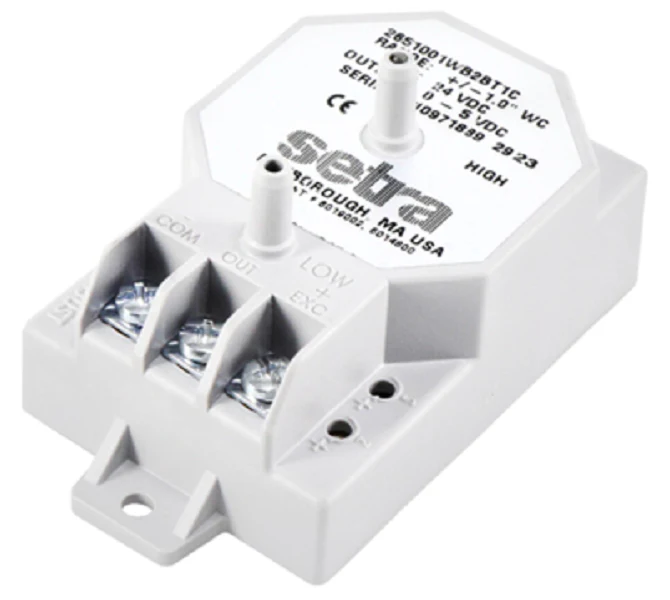

Setra 2651001WB2BT1C Pressure Transducer
The Setra 2651001WB2BT1C is a high-precision low differential pressure transducer engineered for technical environments where accuracy is non-negotiable. This model features a bi-directional range of +/- 1.0 in. WC, utilizing Setra’s patented all-stainless steel capacitive sensing technology. Designed for the rigors of HVAC airflow monitoring and Energy Management Systems (EMS), the 265 Series provides a stable 0-5 VDC analog output with a 24 VDC nominal excitation. The dead-ended sensor design requires minimal amplification, ensuring long-term stability and high resistance to overpressure up to 10 PSI. Compact and contractor-friendly, it includes a terminal strip for secure electrical termination and 1/4" O.D. pressure fittings, making it an industry standard for VAV box control and static duct pressure measurements.
Key Benefits
- Precision Sensing: Delivers +/- 1% Full Scale accuracy for critical cleanroom pressure monitoring and filter status.
- Rugged Construction: Built with a fire-retardant glass-filled case (UL 94 V-0) to meet stringent building codes.
- Simplified Integration: Features internal regulation and reverse wiring protection to prevent field installation errors.
- Versatile Application: Ideal for variable air volume (VAV), fan control, and environmental pollution monitoring.
Common Questions
What media is compatible with this transducer?
The Setra 2651001WB2BT1C is designed for use with air or non-conducting, non-corrosive gases only. Using liquids or corrosive media will cause internal damage.
Can I install this in any orientation?
While the unit is factory-calibrated in a vertical position, it can be mounted in other orientations. However, a zero-point adjustment may be required using the internal trim pots to compensate for positional shifts.
Is this unit protected against incorrect wiring?
Yes, the 265 Series includes reverse wiring protection, which protects the internal circuitry if the excitation and ground wires are inadvertently swapped during commissioning.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
