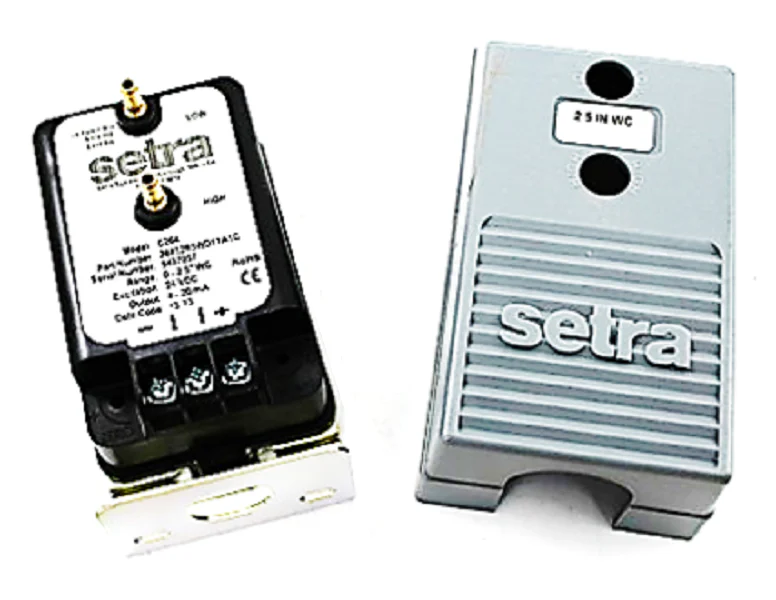

Setra 26412R5WD11A1C Pressure Transducer
The Setra 26412R5WD11A1C is a performance-grade low differential pressure transducer engineered for precision monitoring in HVAC automation and critical environment applications. Building on the reliability of the Setra Model 264 series, this unit features a 0 to 2.5 in. WC unidirectional sensing range and provides a standard 4 to 20 mA output. It utilizes a stainless steel capacitive sensor and a taut-metal diaphragm to ensure exceptional stability under vibration and wide temperature fluctuations. Designed for seamless integration into building automation systems (BAS), the unit includes a rugged 1/2-inch conduit enclosure for secure electrical termination. With an accuracy rating of ±1% Full Scale, this industrial pressure transmitter is ideal for variable air volume (VAV) control and high-efficiency filtration monitoring. Its durable architecture prevents drift, making it a dependable choice for contractors managing duct pressure measurement and static pressure control in demanding commercial environments.
Key Benefits
- Durable Capacitive Sensing: Utilizes a stainless steel diaphragm for long-term stability and high overpressure protection.
- Precise Low-Range Measurement: Engineered specifically for 0 to 2.5 in. WC ranges, ensuring accurate air pressure tracking.
- Standard 4-20mA Signal: Simplifies integration with common industrial controllers and differential pressure sensors.
- NEMA 4 Rated Housing: The 1/2-inch conduit design protects internal electronics from environmental debris and mechanical stress.
- Maintenance-Free Design: Minimal zero-shift ensures the sensor remains accurate without frequent field recalibration.
Common Questions
How do you calibrate the zero point on the Setra 264?
Technicians can easily adjust the zero and span settings using the accessible potentiometers located on the board to account for local installation variables.
Is this sensor suitable for liquid media?
No, this transducer is specifically designed for duct pressure measurement using air or non-conductive gases only.
What is the maximum overpressure limit for the 2.5 in. WC range?
The Model 264 series typically supports overpressure up to 10 PSI without permanent damage, maintaining its performance ±1% FS accuracy after the transient event.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
