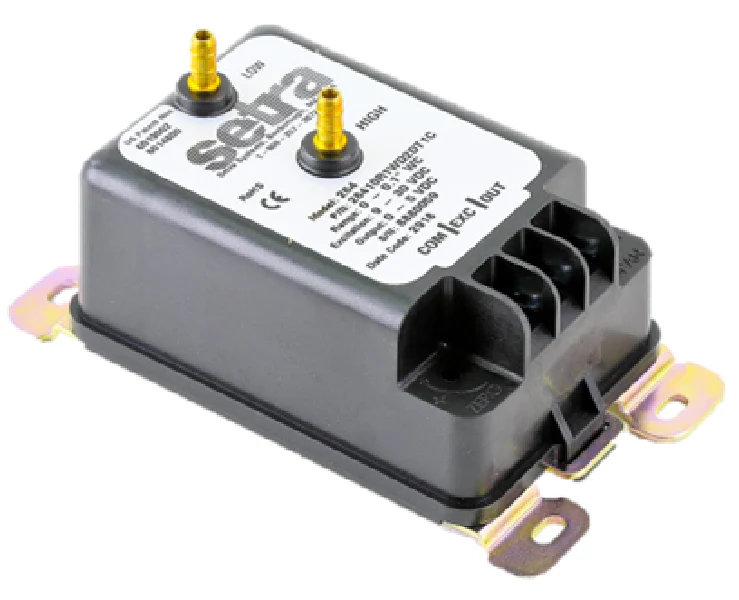

Setra 26410R1WD2DT1C Pressure Transducer
The Setra 26410R1WD2DT1C is a professional-grade low differential pressure transducer specifically engineered for critical HVAC applications and building automation systems (BAS). This unit utilizes a highly sensitive capacitive sensor and a tensioned stainless steel diaphragm to provide precise measurements of dry air and non-conducting gases. For technicians managing pressurization in cleanrooms or hospital environments, the 0-5 VDC output and ±1.0% full scale accuracy ensure stable signals even at extremely low pressure ranges of ±1.0 inches water column (±1.0" W.C.). The Setra Model 264 architecture is designed for ease of field service, featuring a terminal strip for secure wiring and accessible zero/span trim potentiometers for onsite calibration. Unlike standard sensors, this transducer includes reverse wiring protection and high overpressure ratings to withstand system fluctuations without losing calibration integrity.
Technical Benefits for HVAC Contractors:
- Precision Pressure Monitoring: Features a high-stability ±1% FS accuracy rating, ideal for differential pressure sensor applications requiring consistent static pressure control.
- Flexible Installation: Compact NEMA 1 equivalent enclosure with terminal strip connections facilitates rapid mounting into existing control panels or wall surfaces.
- Industrial Durability: The stainless steel wetted parts and rugged plastic housing are engineered for static pressure measurement in environments ranging from 0°F to 175°F.
- System Compatibility: The 0-5 VDC signal is standard for most high-impedance (5K ohm) controller inputs, ensuring straightforward integration with legacy and modern building management systems.
- Signal Reliability: High burst pressure rating of ±10 psid prevents sensor damage during ductwork testing or unexpected system spikes.
Common Questions:
What is the primary application for the Setra 26410R1WD2DT1C?
This model is specifically used for monitoring differential air pressure in VAV boxes, duct pressure, and cleanroom environments where minute changes in pressure must be detected for proper air balancing.
Can this transducer handle liquid media?
No, this specific configuration is designed for dry air or inert, non-conducting gases. It is not intended for use with water or corrosive liquids.
How do I calibrate the sensor in the field?
The unit features internal Zero and Span potentiometers. Technicians can use these to re-zero the sensor once installed to account for any mounting orientation effects on the stainless steel diaphragm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $207.41
-65%$207.41
$72.59Setra 26410R1WD2DT1C Pressure Transducer
