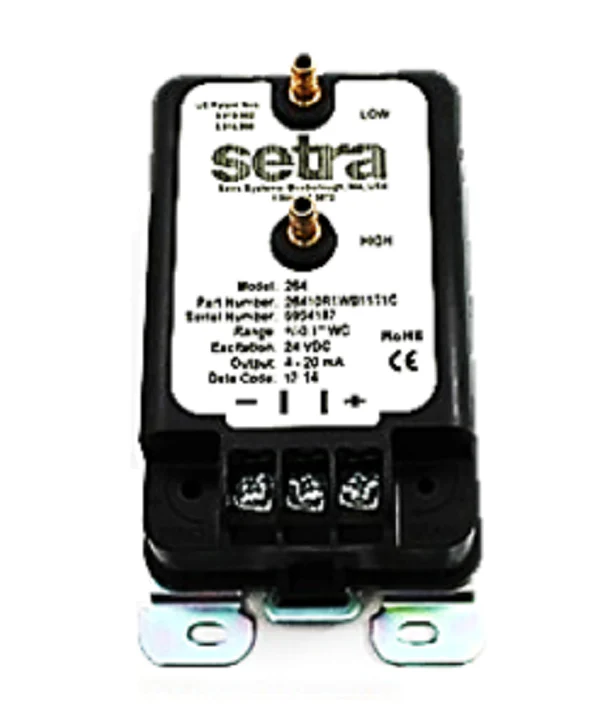

Setra 26410R1WB11T1C Pressure Transducer
The Setra 26410R1WB11T1C is a professional-grade low differential pressure transducer widely utilized by field technicians for critical HVAC building automation and cleanroom monitoring. Engineered with a ±0.1" WC bidirectional pressure range, this unit delivers a precise 4 to 20 mA output signal, ensuring seamless integration with most industrial automation processes and energy management systems. The core technology features a stainless steel welded capacitive sensing element, which provides exceptional ±1% FS accuracy and long-term stability without the need for frequent recalibration. This specific model is built for durability, featuring brass barbed fittings for 3/16" I.D. tubing and a fire-retardant case (UL 94 V-0 approved) to withstand demanding mechanical environments. For simplified field wiring, the terminal strip electrical connection allows for rapid attachment of conductor pairs, while reverse wiring protection safeguards the internal electronics during installation on unregulated DC power supplies.
Key Benefits for Technicians:- Dead-ended capacitive sensor design ensures high overpressure capability up to 10 PSI without damaging the unit.
- Bidirectional range (±0.1" WC) allows for accurate monitoring of both positive and negative pressure in space-critical applications.
- Compact footprint and 4-screw base mount provide flexible installation options in crowded control panels or VAV boxes.
- NIST traceable calibration ensures the accuracy required for healthcare and pharmaceutical laboratory environments.
- Compatible with 2-wire current loops, minimizing electrical noise and signal degradation over long wire runs.
How do I adjust the zero and span on this transducer?
Potentiometers for zero and span adjustments are easily accessible on the top of the case for streamlined field calibration during commissioning.
Can this sensor be used for liquid media calibration?
No, this model is specifically engineered for dry air or non-conducting gases; contact with liquids can permanently damage the internal capacitive sensing element.
What is the proper mounting orientation for the 264 series?
Units are factory calibrated in a vertical position to account for 0g effect; however, they can be mounted in any orientation with a slight field adjustment of the zero pot.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $207.42
-65%$207.42
$72.60Setra 26410R1WB11T1C Pressure Transducer
The Setra 26410R1WB11T1C is a professional-grade low differential pressure transducer widely utilized by field technicians for critical HVAC building automation and cleanroom monitoring. Engineered with a ±0.1" WC bidirectional pressure range, this unit delivers a precise 4 to 20 mA output signal, ensuring seamless integration with most industrial automation processes and energy management systems. The core technology features a stainless steel welded capacitive sensing element, which provides exceptional ±1% FS accuracy and long-term stability without the need for frequent recalibration. This specific model is built for durability, featuring brass barbed fittings for 3/16" I.D. tubing and a fire-retardant case (UL 94 V-0 approved) to withstand demanding mechanical environments. For simplified field wiring, the terminal strip electrical connection allows for rapid attachment of conductor pairs, while reverse wiring protection safeguards the internal electronics during installation on unregulated DC power supplies.
Key Benefits for Technicians:- Dead-ended capacitive sensor design ensures high overpressure capability up to 10 PSI without damaging the unit.
- Bidirectional range (±0.1" WC) allows for accurate monitoring of both positive and negative pressure in space-critical applications.
- Compact footprint and 4-screw base mount provide flexible installation options in crowded control panels or VAV boxes.
- NIST traceable calibration ensures the accuracy required for healthcare and pharmaceutical laboratory environments.
- Compatible with 2-wire current loops, minimizing electrical noise and signal degradation over long wire runs.
How do I adjust the zero and span on this transducer?
Potentiometers for zero and span adjustments are easily accessible on the top of the case for streamlined field calibration during commissioning.
Can this sensor be used for liquid media calibration?
No, this model is specifically engineered for dry air or non-conducting gases; contact with liquids can permanently damage the internal capacitive sensing element.
What is the proper mounting orientation for the 264 series?
Units are factory calibrated in a vertical position to account for 0g effect; however, they can be mounted in any orientation with a slight field adjustment of the zero pot.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
