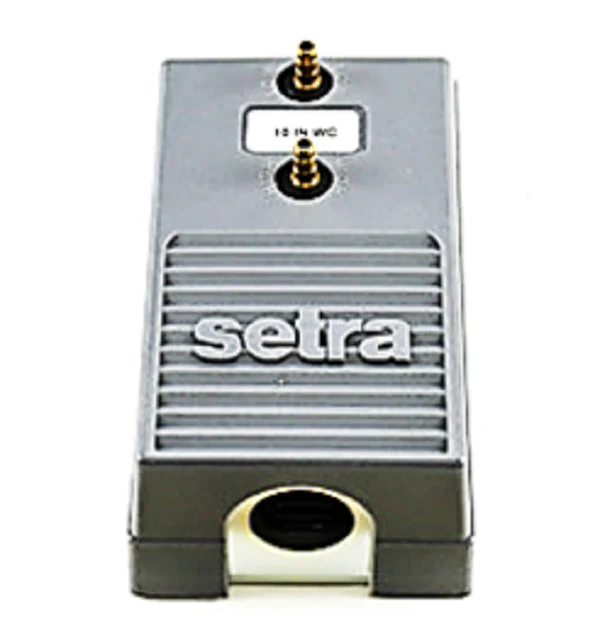

Setra 2641010WD11A1C Pressure Transducer
The Setra 2641010WD11A1C is a field-proven low differential pressure transducer designed for critical air monitoring in building automation and HVAC systems. This 0 to 10" WC unidirectional pressure sensor utilizes a stainless steel welded capacitive element that ensures superior long-term stability and resistance to mechanical shock. As an industry standard for static pressure measurement, it provides a precise 4 to 20 mA output signal with ±1% FS accuracy, making it ideal for VAV box control, leak detection, and laboratory pressurization. The unit is housed in a durable 1/2" conduit enclosure that simplifies installation for contractors while providing secondary protection for the internal electronics. Engineered for the rigors of mechanical rooms, it features reverse wiring protection and up to 10 PSI overpressure capability. When you need a reliable HVAC pressure transmitter that integrates seamlessly with your EMS or PLC, this 0-10 in WC transducer remains the preferred choice for professional technicians overseeing complex air-side infrastructure.
Key Benefits- Enhanced Reliability: The patented capacitive sensing technology minimizes internal amplification requirements, reducing potential failure points.
- Robust Overpressure Protection: Rated for up to 10 PSI line pressure, protecting the diaphragm during system surges or improper commissioning.
- Streamlined Installation: Features a dedicated 1/2" conduit enclosure and dual-barbed fittings for faster termination and mounting.
- Stable Performance: Thermally matched coefficients and a dead-ended sensor design provide excellent zero stability even in fluctuating temperatures.
Is this unit suitable for outdoor air intake monitoring?
Yes, provided it is installed in an appropriate secondary weather enclosure. The primary design focuses on clean, dry air or non-conductive gas within HVAC ductwork and equipment.
How does the 1/2" conduit enclosure benefit my installation?
It allows for direct connection of armored cable or electrical conduit, meeting local electrical codes and protecting the wires from physical damage in high-traffic mechanical areas.
Can I use an unregulated DC power supply with this sensor?
The 264 series includes internal regulation, allowing it to function correctly with most 9 to 30 VDC power sources used in standard industrial control loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $234.18
-65%$234.18
$81.96Setra 2641010WD11A1C Pressure Transducer
The Setra 2641010WD11A1C is a field-proven low differential pressure transducer designed for critical air monitoring in building automation and HVAC systems. This 0 to 10" WC unidirectional pressure sensor utilizes a stainless steel welded capacitive element that ensures superior long-term stability and resistance to mechanical shock. As an industry standard for static pressure measurement, it provides a precise 4 to 20 mA output signal with ±1% FS accuracy, making it ideal for VAV box control, leak detection, and laboratory pressurization. The unit is housed in a durable 1/2" conduit enclosure that simplifies installation for contractors while providing secondary protection for the internal electronics. Engineered for the rigors of mechanical rooms, it features reverse wiring protection and up to 10 PSI overpressure capability. When you need a reliable HVAC pressure transmitter that integrates seamlessly with your EMS or PLC, this 0-10 in WC transducer remains the preferred choice for professional technicians overseeing complex air-side infrastructure.
Key Benefits- Enhanced Reliability: The patented capacitive sensing technology minimizes internal amplification requirements, reducing potential failure points.
- Robust Overpressure Protection: Rated for up to 10 PSI line pressure, protecting the diaphragm during system surges or improper commissioning.
- Streamlined Installation: Features a dedicated 1/2" conduit enclosure and dual-barbed fittings for faster termination and mounting.
- Stable Performance: Thermally matched coefficients and a dead-ended sensor design provide excellent zero stability even in fluctuating temperatures.
Is this unit suitable for outdoor air intake monitoring?
Yes, provided it is installed in an appropriate secondary weather enclosure. The primary design focuses on clean, dry air or non-conductive gas within HVAC ductwork and equipment.
How does the 1/2" conduit enclosure benefit my installation?
It allows for direct connection of armored cable or electrical conduit, meeting local electrical codes and protecting the wires from physical damage in high-traffic mechanical areas.
Can I use an unregulated DC power supply with this sensor?
The 264 series includes internal regulation, allowing it to function correctly with most 9 to 30 VDC power sources used in standard industrial control loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
