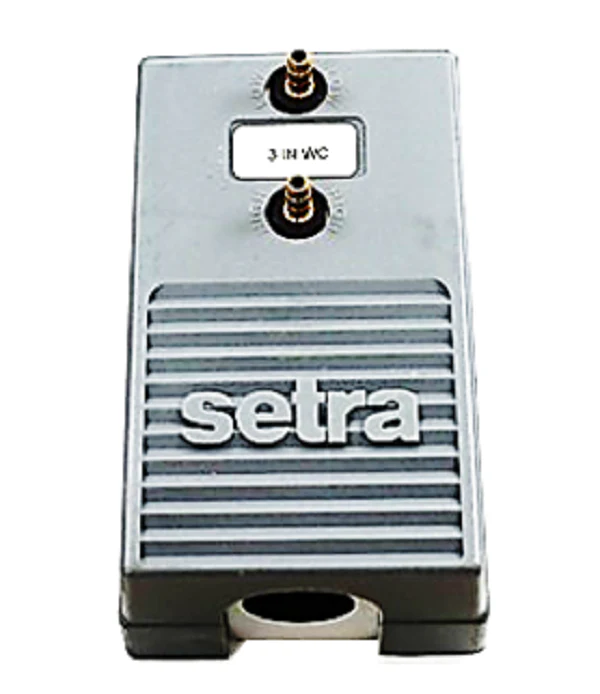

Setra 2641003WD11A1C Pressure Transducer
The Setra 2641003WD11A1C Pressure Transducer is a field-proven solution for low-differential pressure measurements in critical HVAC building automation and energy management systems. This differential air pressure sensor features a unidirectional range of 0-3" WC and provides a linear 4-20mA output, making it compatible with standard industrial controllers and PLC inputs. Built with a robust, all-stainless steel micro-tig welded capacitive sensor, the 264 series facilitates high-accuracy monitoring of building pressurization, VAV fan control, and laboratory fume hood environments.
Engineered for technical reliability, this HVAC pressure transmitter includes a 1/2" conduit electrical connection and 3/16" O.D. barbed brass fittings for secure pneumatic integration. The internal regulation allows for use with unregulated DC power supplies (9 to 30 VDC), while reverse wiring protection prevents installation errors common in the field. With a static accuracy of ±1.0% full scale and an overpressure capability of up to 10 PSI, this low differential pressure transducer ensures long-term stability and precise airflow control without frequent recalibration.
Key Benefits for Technicians:- High Overpressure Protection: Designed to withstand up to 10 PSI without damage, protecting the sensing element from sudden line spikes.
- Durable Sensing Element: Utilizes a stainless steel capacitive diaphragm with thermally matched coefficients for minimal thermal error.
- Streamlined Installation: Compact fire-retardant case (UL 94 V-0) with a removable base for snap-track or surface mounting.
- Field-Adjustable: Accessible zero and span adjustments on the top of the unit allow for fine-tuning after final placement.
- NIST Traceable: Manufactured to high standards with NIST-traceable calibration for data integrity in regulated facility audits.
- What types of media can I measure with this sensor? This unit is specifically intended for air or similar non-conducting, non-corrosive gases used in ductwork and cleanrooms.
- How do I wire the 4-20mA loop? This is a 2-wire current loop device. Power and signal are transmitted over the same two wires; ensure your receiver has an appropriate 24 VDC nominal supply.
- Can this be mounted in any orientation? While versatile, it is standard practice to calibrate and mount the unit vertically to minimize gravity-induced shifts in the zero-pressure signal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $228.97
-65%$228.97
$80.14Setra 2641003WD11A1C Pressure Transducer
The Setra 2641003WD11A1C Pressure Transducer is a field-proven solution for low-differential pressure measurements in critical HVAC building automation and energy management systems. This differential air pressure sensor features a unidirectional range of 0-3" WC and provides a linear 4-20mA output, making it compatible with standard industrial controllers and PLC inputs. Built with a robust, all-stainless steel micro-tig welded capacitive sensor, the 264 series facilitates high-accuracy monitoring of building pressurization, VAV fan control, and laboratory fume hood environments.
Engineered for technical reliability, this HVAC pressure transmitter includes a 1/2" conduit electrical connection and 3/16" O.D. barbed brass fittings for secure pneumatic integration. The internal regulation allows for use with unregulated DC power supplies (9 to 30 VDC), while reverse wiring protection prevents installation errors common in the field. With a static accuracy of ±1.0% full scale and an overpressure capability of up to 10 PSI, this low differential pressure transducer ensures long-term stability and precise airflow control without frequent recalibration.
Key Benefits for Technicians:- High Overpressure Protection: Designed to withstand up to 10 PSI without damage, protecting the sensing element from sudden line spikes.
- Durable Sensing Element: Utilizes a stainless steel capacitive diaphragm with thermally matched coefficients for minimal thermal error.
- Streamlined Installation: Compact fire-retardant case (UL 94 V-0) with a removable base for snap-track or surface mounting.
- Field-Adjustable: Accessible zero and span adjustments on the top of the unit allow for fine-tuning after final placement.
- NIST Traceable: Manufactured to high standards with NIST-traceable calibration for data integrity in regulated facility audits.
- What types of media can I measure with this sensor? This unit is specifically intended for air or similar non-conducting, non-corrosive gases used in ductwork and cleanrooms.
- How do I wire the 4-20mA loop? This is a 2-wire current loop device. Power and signal are transmitted over the same two wires; ensure your receiver has an appropriate 24 VDC nominal supply.
- Can this be mounted in any orientation? While versatile, it is standard practice to calibrate and mount the unit vertically to minimize gravity-induced shifts in the zero-pressure signal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
