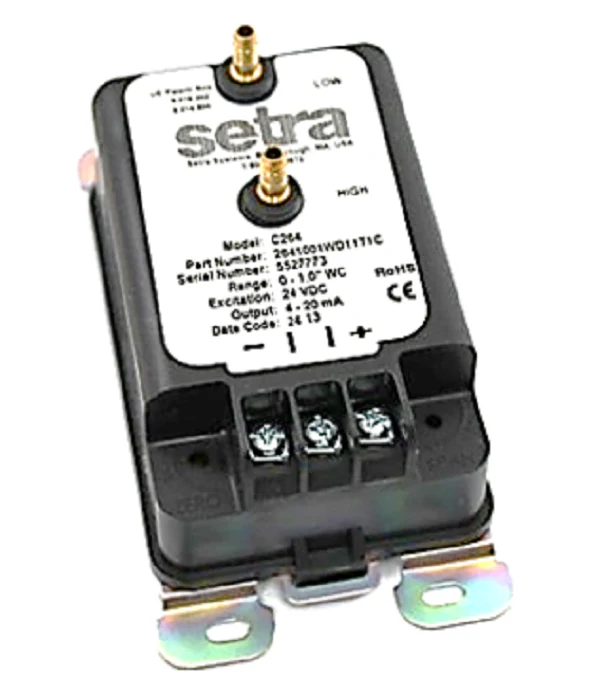

Setra 2641001WD11T1C Pressure Transducer
The Setra 2641001WD11T1C is the industry standard for very low differential pressure measurement in demanding HVAC building automation and critical pharmaceutical environments. This unidirectional pressure transducer features a 0 to 1" WC range and a reliable 4 to 20 mA output, making it ideal for monitoring building pressurization and air flow control. Built with a dead-ended stainless steel welded capacitive sensing element, it ensures high stability and can withstand up to 10 PSI overpressure without damage. The ±1% FS accuracy and internal regulation allow for seamless integration with unregulated DC power supplies (9-30 VDC). Designed for the field, it utilizes a terminal strip for secure electrical connections and 3/16" brass barbed fittings for quick installation. Professionals trust the Setra 264 series for its reverse wiring protection and fire-retardant case, ensuring consistent performance in high-stakes pneumatic systems and cleanroom applications where precise static pressure sensing is required.
Key Benefits- High Overpressure Capability: Robust sensor design handles up to 10 PSI, preventing damage during system spikes.
- Field-Ready Installation: Features a terminal strip and 3/16" dual barb fittings for fast, secure mounting.
- Superior Stability: The stainless steel capacitive sensor requires minimal amplification and provides long-term calibration retention.
- Versatile Power Options: Internal regulation allows the low differential pressure transducer to operate on wide-ranging, unregulated DC sources.
Is the Setra 2641001WD11T1C compatible with liquid media?
No, this transducer is specifically engineered for air or non-conducting gases. Exposure to liquids or corrosive gases will damage the internal sensing element.
What are the wiring requirements for the 4 to 20 mA output?
This is a 2-wire loop-powered device. Connect the positive supply to the (+) terminal and the return signal through the (-) terminal. A shielded cable is recommended for CE compliance.
Can this unit be mounted in any orientation?
While it can be mounted in various positions, it is factory calibrated in the vertical position. Mounting in other orientations may result in a slight zero shift that requires field adjustment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
