Setra 231GRS13MD Trans

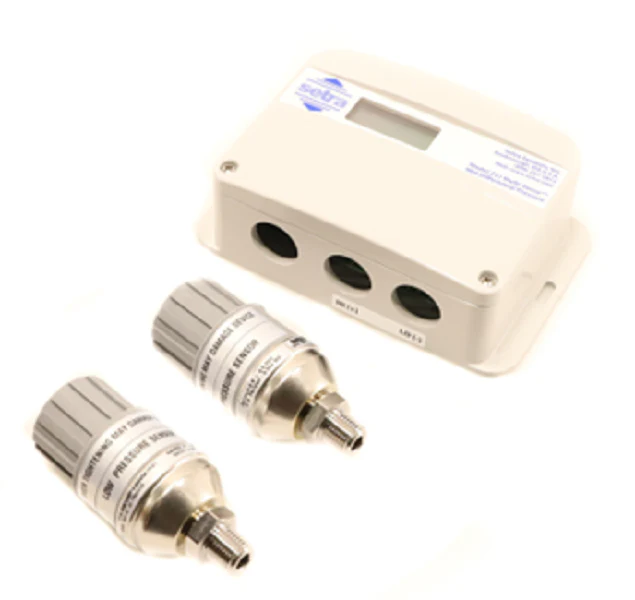

The Setra 231GRS13MD is a professional-grade wet-to-wet differential pressure transducer designed for rapid field deployment in HVAC hydronic systems and process control. This multi-configurable unit features remote sensors with a conduit connection, eliminating the need for complex copper piping runs back to the transducer body and reducing labor by nearly a third. Built for heavy-duty energy management systems, the 231GRS13MD includes an LCD display for real-time local monitoring of high, low, and differential pressure readings. It offers field selectable pressure ranges including unidirectional (0-5, 0-10, 0-25, 0-50 PSID) and bidirectional (±5, ±10, ±25, ±50 PSID) orientations. With all-cast aluminum NEMA 4 housing and 17-4 PH stainless steel wetted parts, it ensures long-term stability and resistance to drift in harsh mechanical rooms. Technicians can easily toggle between 4-20 mA current loops and 0-5/0-10 VDC outputs via the internal slide switches, while the push-button zeroing and jumper-selectable port swap streamline startup and mitigate installation errors.
Key Benefits- Remote Sensor Architecture: Minimizes copper piping costs and plumbing complexity by measuring pressure directly at the source.
- Multi-Configurable Design: Includes 8 field-selectable ranges (up to 50 PSID) and 4 output signals, significantly reducing the stock required for various applications.
- Integrated LCD Display: Provides instant visual validation of line and differential pressures for easier commissioning.
- Rugged Durability: NEMA 4 rated, powder-coated aluminum enclosure protects sensitive electronics from moisture and debris.
- Field Correction Features: Jumper-selectable port swap corrects piping errors without the need for physical replumbing.
Can the Setra 231GRS13MD be used with glycol or other liquids?
Yes, the 17-4 PH stainless steel wetted materials are compatible with liquid or gas media such as water, glycol, and various non-corrosive chemicals found in hydronic cooling and heating systems.
What is the maximum line pressure for this unit?
The MS1 configuration for the 231GRS13MD supports a maximum line pressure of 100 PSI, making it suitable for standard commercial building pressure requirements.
How do I resolve a zero-point offset after installation?
This model features a field-accessible push-button auto-zero and remote zero capability. After piping and powering the unit, technicians can hold the zero button for two seconds to reset the baseline.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $820.11
-65%$820.11
$287.04Setra 231GRS13MD Trans
