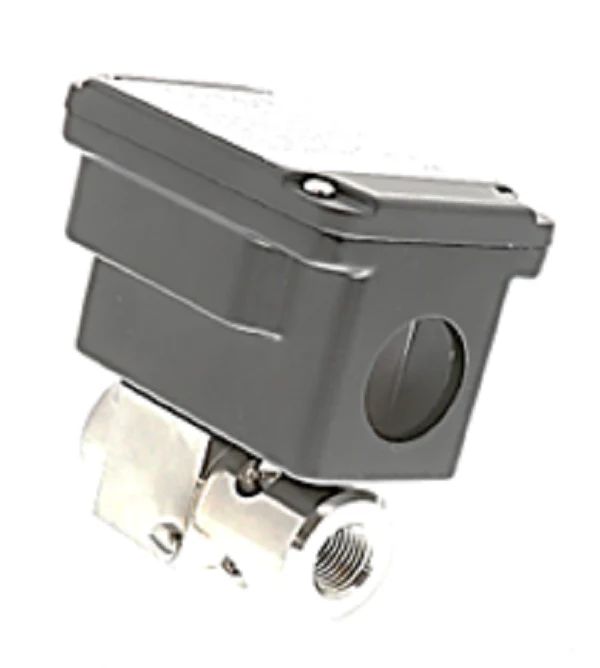

Setra 2301050PD2F11BC Pressure Transmitter
The Setra 2301050PD2F11BC is a high-precision wet-to-wet differential pressure transmitter engineered for demanding HVACR and industrial applications. This Model 230 unit features a 0 to 50 PSID unidirectional pressure range and utilizes a single-diaphragm capacitive sensor that delivers ±0.25% full scale accuracy. Unlike dual-sensor systems that compound errors, this true differential pressure transducer measures the delta across the diaphragm directly, providing superior stability and a response time up to 20x faster than oil-filled alternatives. Constructed with 17-4 stainless steel wetted parts and Standard Viton bleed screw seals, it is compatible with a wide variety of liquids and gases. The 4-20 mA output signal ensures seamless integration into standard 2-wire control loops, while the 1/4" NPT (F) pressure fitting and NEMA 4/IP65 rated housing facilitate reliable installation in mechanical rooms or outdoors.
Key Benefits- True Differential Measurement: Single-diaphragm capacitive technology eliminates line pressure errors inherent in dual-sensor calculations.
- Rugged Construction: 17-4 PH stainless steel sensor and Viton seals provide excellent chemical compatibility and durability.
- Fast System Response: All-solid-state design offers rapid pressure tracking for critical chilled water loop and pump control applications.
- Simple Field Adjustment: Dedicated zero and span trim potentiometers allow for precise calibration tuning in the field.
- High Overpressure Protection: Robust design handles high line pressures up to 350 PSI without compromising sensor integrity.
Is this sensor compatible with both liquids and gases?
Yes, the Setra Model 230 is specifically designed for wet-to-wet applications and can handle any media compatible with 300-series and 17-4 stainless steel and Viton seals.
Does this unit require a specific mounting orientation?
The factory calibration is performed with the diaphragm in the vertical position. While it can be mounted in other orientations, a zero-adjustment may be necessary to compensate for position-induced shift.
How do I bleed air from the lines after installation?
This model includes standard Viton bleed screws. Use a screwdriver to slightly loosen the screws while the system is under pressure until only liquid (no air bubbles) escapes, then retighten to ensure accurate differential pressure sensing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Setra 2301050PD2F11BC Pressure Transmitter
The Setra 2301050PD2F11BC is a high-precision wet-to-wet differential pressure transmitter engineered for demanding HVACR and industrial applications. This Model 230 unit features a 0 to 50 PSID unidirectional pressure range and utilizes a single-diaphragm capacitive sensor that delivers ±0.25% full scale accuracy. Unlike dual-sensor systems that compound errors, this true differential pressure transducer measures the delta across the diaphragm directly, providing superior stability and a response time up to 20x faster than oil-filled alternatives. Constructed with 17-4 stainless steel wetted parts and Standard Viton bleed screw seals, it is compatible with a wide variety of liquids and gases. The 4-20 mA output signal ensures seamless integration into standard 2-wire control loops, while the 1/4" NPT (F) pressure fitting and NEMA 4/IP65 rated housing facilitate reliable installation in mechanical rooms or outdoors.
Key Benefits- True Differential Measurement: Single-diaphragm capacitive technology eliminates line pressure errors inherent in dual-sensor calculations.
- Rugged Construction: 17-4 PH stainless steel sensor and Viton seals provide excellent chemical compatibility and durability.
- Fast System Response: All-solid-state design offers rapid pressure tracking for critical chilled water loop and pump control applications.
- Simple Field Adjustment: Dedicated zero and span trim potentiometers allow for precise calibration tuning in the field.
- High Overpressure Protection: Robust design handles high line pressures up to 350 PSI without compromising sensor integrity.
Is this sensor compatible with both liquids and gases?
Yes, the Setra Model 230 is specifically designed for wet-to-wet applications and can handle any media compatible with 300-series and 17-4 stainless steel and Viton seals.
Does this unit require a specific mounting orientation?
The factory calibration is performed with the diaphragm in the vertical position. While it can be mounted in other orientations, a zero-adjustment may be necessary to compensate for position-induced shift.
How do I bleed air from the lines after installation?
This model includes standard Viton bleed screws. Use a screwdriver to slightly loosen the screws while the system is under pressure until only liquid (no air bubbles) escapes, then retighten to ensure accurate differential pressure sensing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
