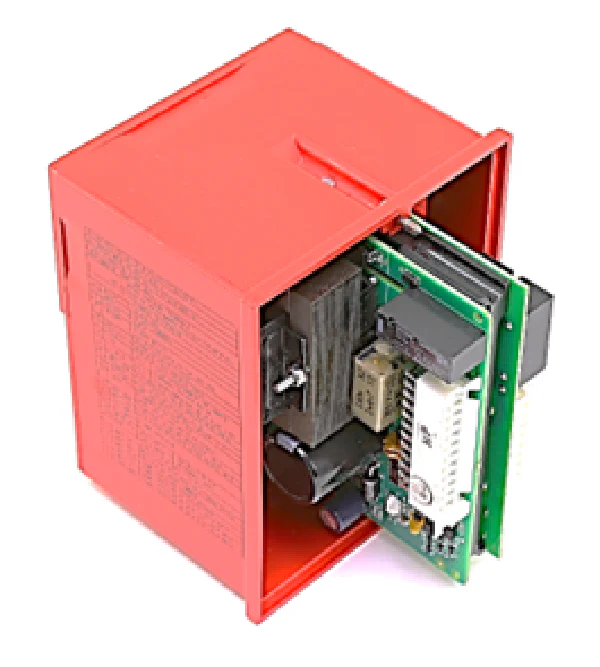

Fireye ZB110UV Chassis
The Fireye ZB110UV Chassis is a core component of the BurnerLogix Z flame safeguard system, designed for high-end industrial and commercial burner management. This 120VAC chassis features an integrated non-self-check UV amplifier, making it a direct solution for detecting ultraviolet radiation in gas or oil flames when using compatible 120V scanners. Unlike the standard Y system, the Z-series chassis incorporates advanced boiler control functions, including PID modulation control and burner sequencing, all within a single compact housing. It supports full communication via Modbus RS485, allowing technicians to integrate the system into a DCS for real-time monitoring of flame signal strength (4-20mA), operational hours, and lockout history stored in its non-volatile memory.
For contractors upgrading from legacy systems like the Honeywell RM7800 series, the Fireye ZB110UV offers a standardized pigtail or terminal block interface for streamlined installation. The unit provides critical safety interlocks, including proof of fuel valve closure and high fire proving, managed by interchangeable YP1XX programmer modules. By leveraging cold start thermal shock protection and assured low fire cut-off, this chassis minimizes mechanical stress on the boiler vessel and firing rate motors. When paired with the appropriate UV flame scanner, the ZB110UV ensures precise ignition timing and robust flame monitoring for demanding combustion environments.
Key Benefits- Integrated Boiler Control: Combines flame safeguard management with PID modulation for a unified firing rate control solution.
- Robust Data Logging: Features non-volatile memory to preserve historical diagnostic data and current cycle status during power interruptions.
- Standardized Compatibility: Designed for easy integration with Fireye UV scanners and interchangeable YP1XX series programmer modules.
- Advanced Communication: Built-in Modbus RS485 link enables seamless remote monitoring and DCS integration for industrial applications.
- High-Precision Safety: Includes cold start protection and rigorous 4-20mA flame signal readouts for reliable burner sequencing.
Is the Fireye ZB110UV compatible with self-check UV scanners?
No, this specific chassis is designed for non-self-check UV amplifiers only. If your application requires a self-check scanner for continuous operation beyond 24 hours, you must select the appropriate self-check chassis/amplifier model.
Does this chassis include the display module?
The ZB110UV is a chassis and amplifier module that includes mounting screws and a blank display cover. The alpha-numeric display (such as the BLV512 or BLL510) must be ordered separately if required for programming or monitoring.
Can I use this for both gas and oil burners?
Yes, the BurnerLogix Z system is engineered for automatically ignited gas, oil, and combination fuel burners, provided the correct scanner and programmer module are utilized for the specific fuel type.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,461.85
-65%$1,461.85
$511.65Fireye ZB110UV Chassis
The Fireye ZB110UV Chassis is a core component of the BurnerLogix Z flame safeguard system, designed for high-end industrial and commercial burner management. This 120VAC chassis features an integrated non-self-check UV amplifier, making it a direct solution for detecting ultraviolet radiation in gas or oil flames when using compatible 120V scanners. Unlike the standard Y system, the Z-series chassis incorporates advanced boiler control functions, including PID modulation control and burner sequencing, all within a single compact housing. It supports full communication via Modbus RS485, allowing technicians to integrate the system into a DCS for real-time monitoring of flame signal strength (4-20mA), operational hours, and lockout history stored in its non-volatile memory.
For contractors upgrading from legacy systems like the Honeywell RM7800 series, the Fireye ZB110UV offers a standardized pigtail or terminal block interface for streamlined installation. The unit provides critical safety interlocks, including proof of fuel valve closure and high fire proving, managed by interchangeable YP1XX programmer modules. By leveraging cold start thermal shock protection and assured low fire cut-off, this chassis minimizes mechanical stress on the boiler vessel and firing rate motors. When paired with the appropriate UV flame scanner, the ZB110UV ensures precise ignition timing and robust flame monitoring for demanding combustion environments.
Key Benefits- Integrated Boiler Control: Combines flame safeguard management with PID modulation for a unified firing rate control solution.
- Robust Data Logging: Features non-volatile memory to preserve historical diagnostic data and current cycle status during power interruptions.
- Standardized Compatibility: Designed for easy integration with Fireye UV scanners and interchangeable YP1XX series programmer modules.
- Advanced Communication: Built-in Modbus RS485 link enables seamless remote monitoring and DCS integration for industrial applications.
- High-Precision Safety: Includes cold start protection and rigorous 4-20mA flame signal readouts for reliable burner sequencing.
Is the Fireye ZB110UV compatible with self-check UV scanners?
No, this specific chassis is designed for non-self-check UV amplifiers only. If your application requires a self-check scanner for continuous operation beyond 24 hours, you must select the appropriate self-check chassis/amplifier model.
Does this chassis include the display module?
The ZB110UV is a chassis and amplifier module that includes mounting screws and a blank display cover. The alpha-numeric display (such as the BLV512 or BLL510) must be ordered separately if required for programming or monitoring.
Can I use this for both gas and oil burners?
Yes, the BurnerLogix Z system is engineered for automatically ignited gas, oil, and combination fuel burners, provided the correct scanner and programmer module are utilized for the specific fuel type.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
