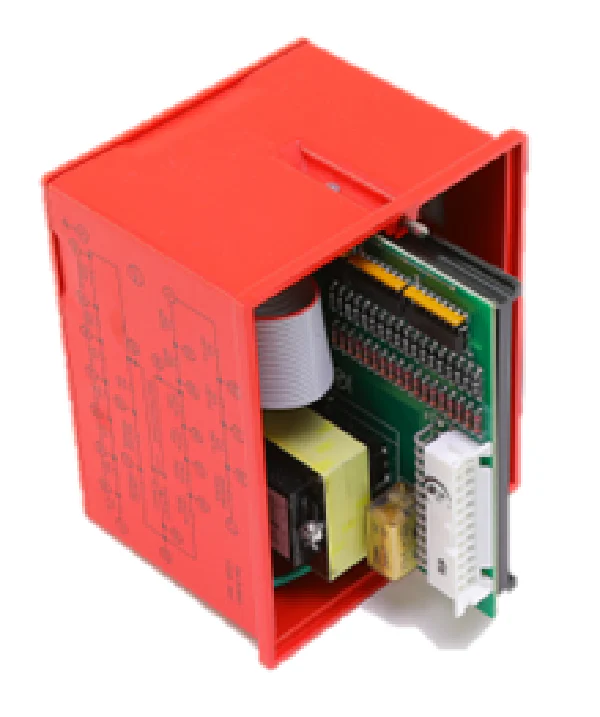

Fireye YZ300 Annunciator
The Fireye YZ300 Annunciator is a specialized 120V Interlock Annunciator module designed to integrate with the Fireye BurnerLogix system, specifically the YB110 and ZB110 chassis. This module significantly reduces troubleshooting downtime by providing first-out annunciation for up to twenty individual interlock switches. It is engineered to monitor four recycling interlocks within the L1-3 operating control circuit and sixteen non-recycling interlocks in the 3-P running circuit. By isolating the exact point of failure in the interlock chain, the YZ300 allows technicians to identify faults like low water, high gas pressure, or airflow failure without manual tracing. BurnerLogix troubleshooting is further streamlined through the module?ÇÖs ability to display default or custom-programmed messages up to 40 characters long. The hardware features a compact wiring base with 24 screw-clamp terminals, ensuring a secure mechanical connection in high-vibration fuel-burning environments. For dual-fuel applications, the integrated fuel selection circuit maintains full tracking and reporting accuracy even during simultaneous firing, making it a critical boiler safety control component for complex industrial burner setups.
Key Benefits
- Enhanced Diagnostics: Provides first-out sequence tracking for 20 interlock switches, identifying the specific limit that triggered a lockout.
- System Compatibility: Seamlessly interfaces with BurnerLogix chassis (YB110 engineering code 3+ or any ZB110) via standard ED580 cables.
- Customizable Messaging: Supports field-programmable lockout messages via the Fireye YZ300P softare or BLV512/BLL510 display modules.
- Dual-Fuel Supervision: Includes a dedicated fuel selector circuit to manage separate gas/oil interlock strings during simultaneous or alternating operation.
- Robust Construction: Designed for industrial boiler rooms with an operating temperature range of -40??F to 140??F.
Common Questions
What cables are required for installation?Connection to the BurnerLogix chassis requires Fireye cables P/N ED580-2, ED580-4, or ED580-8. A separate wiring base (P/N 60-2872-1 or 60-2874-1) is also necessary for mounting.
How do I handle unused interlocks on the YZ300?Any interlock terminals not in use must be physically jumped out (e.g., jumping terminals 59 and 60 if Aux Limit #7 is unused) to ensure the first-out annunciation logic functions correctly.
Can I program the module without the burner control?Yes, the YZ300 can be custom programmed with a Windows PC and the YZ300P software without being connected to a live BurnerLogix system, provided it has 120V power.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,209.31
-65%$1,209.31
$423.26Fireye YZ300 Annunciator
The Fireye YZ300 Annunciator is a specialized 120V Interlock Annunciator module designed to integrate with the Fireye BurnerLogix system, specifically the YB110 and ZB110 chassis. This module significantly reduces troubleshooting downtime by providing first-out annunciation for up to twenty individual interlock switches. It is engineered to monitor four recycling interlocks within the L1-3 operating control circuit and sixteen non-recycling interlocks in the 3-P running circuit. By isolating the exact point of failure in the interlock chain, the YZ300 allows technicians to identify faults like low water, high gas pressure, or airflow failure without manual tracing. BurnerLogix troubleshooting is further streamlined through the module?ÇÖs ability to display default or custom-programmed messages up to 40 characters long. The hardware features a compact wiring base with 24 screw-clamp terminals, ensuring a secure mechanical connection in high-vibration fuel-burning environments. For dual-fuel applications, the integrated fuel selection circuit maintains full tracking and reporting accuracy even during simultaneous firing, making it a critical boiler safety control component for complex industrial burner setups.
Key Benefits
- Enhanced Diagnostics: Provides first-out sequence tracking for 20 interlock switches, identifying the specific limit that triggered a lockout.
- System Compatibility: Seamlessly interfaces with BurnerLogix chassis (YB110 engineering code 3+ or any ZB110) via standard ED580 cables.
- Customizable Messaging: Supports field-programmable lockout messages via the Fireye YZ300P softare or BLV512/BLL510 display modules.
- Dual-Fuel Supervision: Includes a dedicated fuel selector circuit to manage separate gas/oil interlock strings during simultaneous or alternating operation.
- Robust Construction: Designed for industrial boiler rooms with an operating temperature range of -40??F to 140??F.
Common Questions
What cables are required for installation?Connection to the BurnerLogix chassis requires Fireye cables P/N ED580-2, ED580-4, or ED580-8. A separate wiring base (P/N 60-2872-1 or 60-2874-1) is also necessary for mounting.
How do I handle unused interlocks on the YZ300?Any interlock terminals not in use must be physically jumped out (e.g., jumping terminals 59 and 60 if Aux Limit #7 is unused) to ensure the first-out annunciation logic functions correctly.
Can I program the module without the burner control?Yes, the YZ300 can be custom programmed with a Windows PC and the YZ300P software without being connected to a live BurnerLogix system, provided it has 120V power.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
