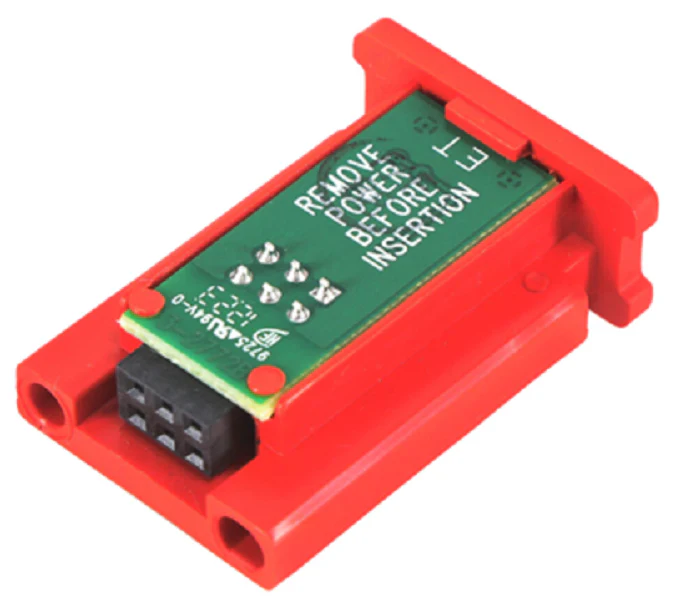

Fireye YP184 Programmer Module
The Fireye YP184 Programmer Module is a critical, plug-in component engineered specifically for use with the BurnerLogix YB110 (or YB230) and BurnerLogix ZB110 chassis. As a veteran-grade burner control programmer, the YP184 dictates the precise operational sequencing of your combustion system, including modulation, fuel selection, and valve proving. This specific module is distinguished by its active low gas pressure check functionality and a high-performance 4-second Flame Failure Response Time (FFRT), making it essential for industrial burners requiring rapid shutoff capabilities for enhanced safety. Compatible with Y and Z series modules, the YP184 allows for comprehensive parameter configuration via the alphanumeric keypad display, ensuring tight control over purge timing and pilot hold sequences during light-off.
Key Benefits for Contractors:- Precise Safety Timing: Delivers a 4-second FFRT to ensure immediate fuel shutoff upon flame signal loss.
- Field Configurable: Full access to keypad selectable parameters for PTFI, MTFI, and custom purge cycles.
- BurnerLogix Integration: Designed for seamless plug-in installation into standard YB-series flame safeguard chassis.
- Advanced Monitoring: Includes integrated low gas pressure check (active low) to monitor incoming fuel interlocks.
- Versatile Control: Supports modulation, non-recycle operation, and open/closed damper proving.
How do I install the YP184 into a BurnerLogix chassis?
The module features a plug-in design. Ensure power is disconnected, then press the YP184 into the YB housing until it sits flush. If replacing an existing module, use a small screwdriver in the provided top and bottom slots to "pop" the unit out.
What is the difference between the YP148 and the YP184?
The YP184 is functionally identical to the YP148 programmer, with the critical exception of the gas pressure interlock logic. The YP184 utilizes an active low gas pressure check, whereas the YP148 uses an active high logic.
Can I change the purge timing on this module?
Yes. When paired with a BurnerLogix keypad display, the purge timing and other sequence delays are fully field-adjustable to meet specific boiler or furnace OEM requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
