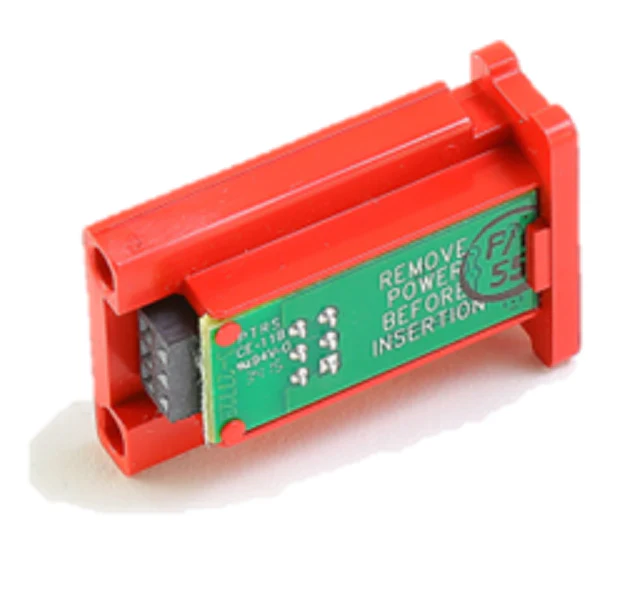

Fireye YP138 Program Module
The Fireye YP138 Program Module is a high-performance BurnerLogix programmer designed for precision burner management and safety. This microprocessor-based ignition module provides essential non-recycle operation for industrial and commercial burners, ensuring a 4-second Flame Failure Response Time (FFRT) for rapid shutdown in the event of a lost signal. Built for versatility, the YP138 features keypad selectable parameters that allow technicians to configure logic for modulation and open/closed damper proving. Engineered for automatic burner sequencing, this module supports indefinite pilot hold and revert to pilot capabilities, optimized for fuel efficiency and complex firing cycles. The integrated RS485 Modbus communications and 4-20mA flame signal output provide seamless integration into building automation systems for real-time monitoring and remote diagnostic lockout tracking. This plug-in programmer is the standard for contractors maintaining BurnerLogix YB110 or YB230 chassis installations requiring reliable flame monitoring and microprocessor control.
Key Benefits- Enhanced System safety: Delivers a critical 4-second FFRT to ensure the fastest possible fuel valve closure during flame failure.
- Field Flexibility: Features keypad selectable parameters so you can adjust purge timing and sequence logic without swapping hardware.
- Operational Continuity: Includes indefinite pilot hold and non-volatile memory, ensuring the module retains history and position even after power interruptions.
- Technical Diagnostics: Simplifies troubleshooting with Modbus communication and LED status indicators for lockout information.
- Advanced Control logic: Supports revert to pilot from auto, increasing burner turn-down ratios and overall system efficiency.
Is the Fireye YP138 compatible with all BurnerLogix chassis?
Yes, the YP138 programmer is designed to plug directly into Fireye BurnerLogix YB110 and YB230 series chassis. Ensure your chassis is equipped with the correct flame amplifier (UV, IR, or Flame Rod) for your specific scanner type.
Does this module support Modbus communication for remote monitoring?
Yes, the Fireye YP138 features built-in RS485 Modbus multi-drop links, allowing for remote display mounting and integration with PLC systems for combustion control data logging.
What is the difference between recycle and non-recycle operation in this module?
The YP138 is a non-recycle module, meaning that if a flame failure or interlock trip occurs after the trial for ignition, the system will proceed to a safety lockout rather than attempting an automatic restart, as required by specific HVACR safety codes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,148.65
-65%$1,148.65
$402.03Fireye YP138 Program Module
The Fireye YP138 Program Module is a high-performance BurnerLogix programmer designed for precision burner management and safety. This microprocessor-based ignition module provides essential non-recycle operation for industrial and commercial burners, ensuring a 4-second Flame Failure Response Time (FFRT) for rapid shutdown in the event of a lost signal. Built for versatility, the YP138 features keypad selectable parameters that allow technicians to configure logic for modulation and open/closed damper proving. Engineered for automatic burner sequencing, this module supports indefinite pilot hold and revert to pilot capabilities, optimized for fuel efficiency and complex firing cycles. The integrated RS485 Modbus communications and 4-20mA flame signal output provide seamless integration into building automation systems for real-time monitoring and remote diagnostic lockout tracking. This plug-in programmer is the standard for contractors maintaining BurnerLogix YB110 or YB230 chassis installations requiring reliable flame monitoring and microprocessor control.
Key Benefits- Enhanced System safety: Delivers a critical 4-second FFRT to ensure the fastest possible fuel valve closure during flame failure.
- Field Flexibility: Features keypad selectable parameters so you can adjust purge timing and sequence logic without swapping hardware.
- Operational Continuity: Includes indefinite pilot hold and non-volatile memory, ensuring the module retains history and position even after power interruptions.
- Technical Diagnostics: Simplifies troubleshooting with Modbus communication and LED status indicators for lockout information.
- Advanced Control logic: Supports revert to pilot from auto, increasing burner turn-down ratios and overall system efficiency.
Is the Fireye YP138 compatible with all BurnerLogix chassis?
Yes, the YP138 programmer is designed to plug directly into Fireye BurnerLogix YB110 and YB230 series chassis. Ensure your chassis is equipped with the correct flame amplifier (UV, IR, or Flame Rod) for your specific scanner type.
Does this module support Modbus communication for remote monitoring?
Yes, the Fireye YP138 features built-in RS485 Modbus multi-drop links, allowing for remote display mounting and integration with PLC systems for combustion control data logging.
What is the difference between recycle and non-recycle operation in this module?
The YP138 is a non-recycle module, meaning that if a flame failure or interlock trip occurs after the trial for ignition, the system will proceed to a safety lockout rather than attempting an automatic restart, as required by specific HVACR safety codes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
