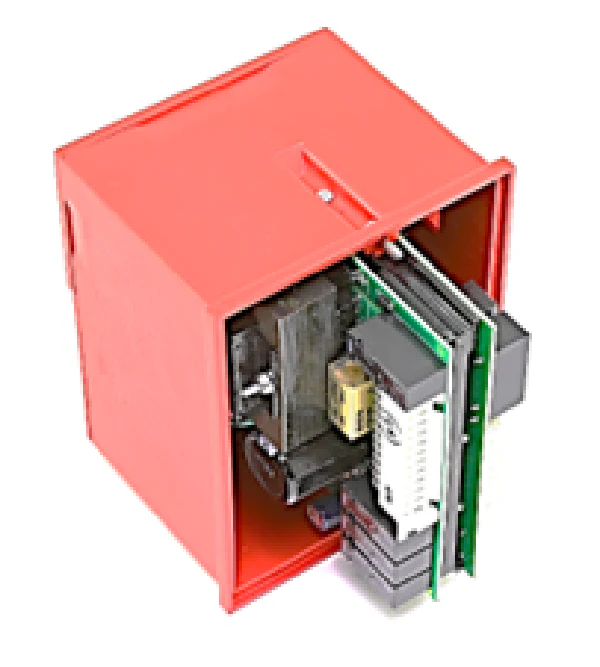

Fireye YB110UVSC Chassis
The Fireye YB110UVSC Chassis is a core microprocessor-based burner management control designed for 120V AC industrial applications. Built for the BurnerLogix Y-Series, this unit integrates a dedicated self-check UV flame amplifier, making it essential for processes requiring continuous-duty burner operation. It provides reliable flame monitoring protection for gas, oil, or combination fuel burners by ensuring constant component verification. Total system safety is managed through precise burner sequencing, controlling the blower motor, ignition, and fuel valves to maintain rigorous oversight from pre-purge to shutdown.
Engineered for high-performance flame safeguard integration, the YB110UVSC features a 4-20mA output for remote signal monitoring and Modbus RS485 communications for seamless BMS or PLC connectivity. The chassis supports interchangeable YP programmer modules, giving technicians control over purge timing and flame failure response periods. Visual diagnostics are provided via smart LEDs, while internal memory preserves operational history and lockout status even during power interruptions. This chassis is commonly paired with 45UV5 or 55UV5 self-check scanners to meet the safety requirements of modern boiler rooms and thermal process facilities.
Key Benefits- Continuous Duty Compliance: Integrated self-check amplifier technology permits ongoing burner operation without the need for periodic manual cycling.
- Advanced Diagnostics: Real-time flame signal strength and operational status are accessible via Modbus or optional VFD/LCD plug-in displays.
- System Flexibility: Compatible with various YP programmer modules to customize safety parameters for specific industrial burner profiles.
- Robust Safety Architecture: Includes proof of fuel valve closure logic and adaptive signal thresholds to prevent nuisance shutdowns.
- Retrofit Compatibility: Designed for an easy upgrade path from legacy Fireye flame safeguards using standard pigtail or terminal block wiring bases.
Which flame scanners are compatible with the YB110UVSC?
This chassis is specifically designed for self-check ultra-violet scanners, such as the Fireye 45UV5 and 55UV5 models. Using non-self-check scanners will cause a system fault.
Does this unit include the programmer module?
No, the YB110UVSC is a chassis and amplifier module only. A separate YP Series programmer module is required to set the specific operational timing and logic for your burner.
Can I monitor the flame signal remotely?
Yes, the chassis provides a 4-20mA analog output and RS485 Modbus communication, allowing you to track flame intensity and system diagnostics from a centralized control room.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
