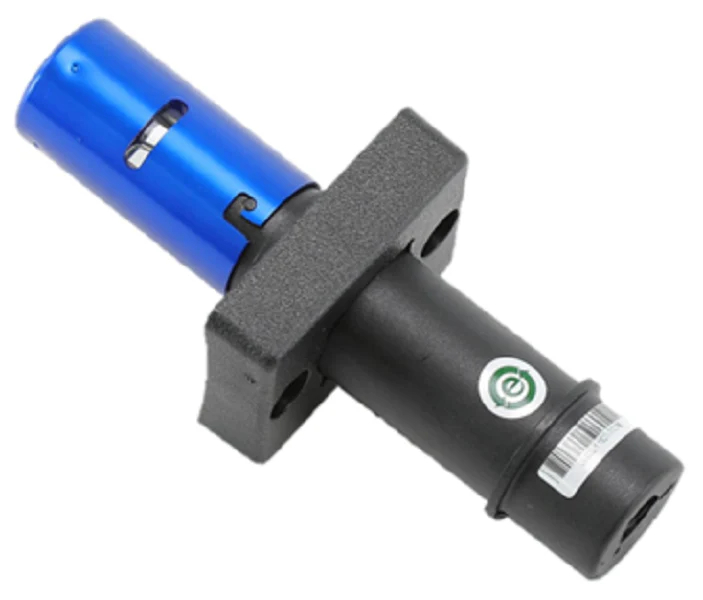

Fireye UV90L-1 Scanner
The Fireye UV90L-1 Scanner is a high-sensitivity, non-self-checking ultraviolet flame detector engineered for reliable performance in industrial and commercial combustion settings. Designed for a 180-degree field of view with both front and 90-degree lateral sensing capabilities, this scanner allows for flexible orientation to achieve the clearest sightline of the flame. It integrates seamlessly with Fireye BurnerPRO, MBCE, and NXF4000 burner management systems, providing critical flame-on signaling for natural gas, propane, and light oil applications. Constructed with a snug-fit mounting block, the UV90L-1 eliminates the requirement for traditional threaded sight pipes, simplifying field installation. The unit features a field-wireable terminal block, allowing technicians to use shielded 2-conductor cabling for secure electrical termination. Its gas-filled quartz UV tube is optimized to detect ultraviolet radiation while minimizing nuisance trips caused by background infrared heat, ensuring stable operation for industrial boilers, furnaces, and gas turbines. This scanner is a vital component for contractors maintaining flame safeguard controls where high-speed response and rugged mounting are required.
Key Benefits for Technicians- Dual Mounting Flexibility: Supports front and 90-degree lateral viewing to optimize flame signal strength in tight burner housings.
- Simplified Installation: The exclusive snug-fit block design removes the need for 1/2-inch NPT threaded piping.
- System Compatibility: Fully compatible with BurnerPRO and Nexus NXF4000 lead-lag and flame safeguard controls.
- Field-Serviceable Wiring: Integrated terminal block allows for direct wiring without the need for factory-molded cable assemblies.
- Broad Fuel Detection: High sensitivity to UV radiation from natural gas, propane, and #2 fuel oil.
- Can this scanner be used with heavy fuel oils? While effective for gas and light oil, heavy oils may produce an unburned fuel shroud that blocks UV. Infrared detection is typically recommended for fuels heavier than #2 oil.
- Does the UV90L-1 require shielded cable? Yes. To prevent electrical noise (EMI) from creating false flame signals, contractors must use shielded 2-conductor cabling.
- What causes a "Standby False Flame" lockout? This typically occurs if the scanner detects UV radiation (e.g., from an adjacent burner or spark ignition) for more than 60 seconds while the system is in standby mode.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $200.46
-65%$200.46
$70.16Fireye UV90L-1 Scanner
The Fireye UV90L-1 Scanner is a high-sensitivity, non-self-checking ultraviolet flame detector engineered for reliable performance in industrial and commercial combustion settings. Designed for a 180-degree field of view with both front and 90-degree lateral sensing capabilities, this scanner allows for flexible orientation to achieve the clearest sightline of the flame. It integrates seamlessly with Fireye BurnerPRO, MBCE, and NXF4000 burner management systems, providing critical flame-on signaling for natural gas, propane, and light oil applications. Constructed with a snug-fit mounting block, the UV90L-1 eliminates the requirement for traditional threaded sight pipes, simplifying field installation. The unit features a field-wireable terminal block, allowing technicians to use shielded 2-conductor cabling for secure electrical termination. Its gas-filled quartz UV tube is optimized to detect ultraviolet radiation while minimizing nuisance trips caused by background infrared heat, ensuring stable operation for industrial boilers, furnaces, and gas turbines. This scanner is a vital component for contractors maintaining flame safeguard controls where high-speed response and rugged mounting are required.
Key Benefits for Technicians- Dual Mounting Flexibility: Supports front and 90-degree lateral viewing to optimize flame signal strength in tight burner housings.
- Simplified Installation: The exclusive snug-fit block design removes the need for 1/2-inch NPT threaded piping.
- System Compatibility: Fully compatible with BurnerPRO and Nexus NXF4000 lead-lag and flame safeguard controls.
- Field-Serviceable Wiring: Integrated terminal block allows for direct wiring without the need for factory-molded cable assemblies.
- Broad Fuel Detection: High sensitivity to UV radiation from natural gas, propane, and #2 fuel oil.
- Can this scanner be used with heavy fuel oils? While effective for gas and light oil, heavy oils may produce an unburned fuel shroud that blocks UV. Infrared detection is typically recommended for fuels heavier than #2 oil.
- Does the UV90L-1 require shielded cable? Yes. To prevent electrical noise (EMI) from creating false flame signals, contractors must use shielded 2-conductor cabling.
- What causes a "Standby False Flame" lockout? This typically occurs if the scanner detects UV radiation (e.g., from an adjacent burner or spark ignition) for more than 60 seconds while the system is in standby mode.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
