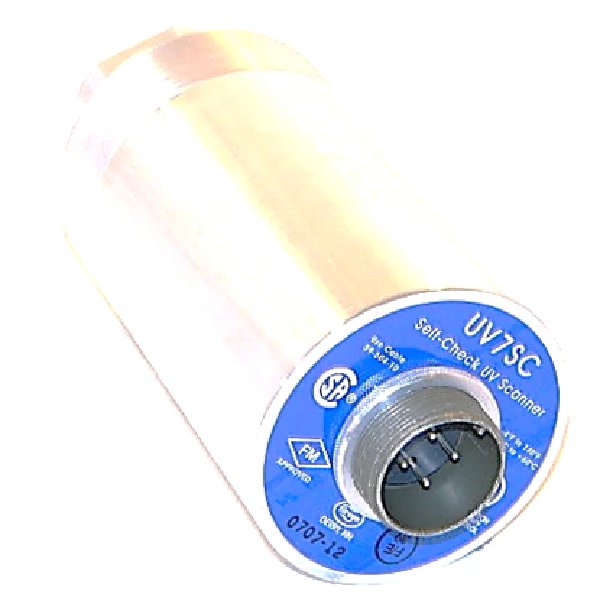

Fireye UV7SC Scanner
The Fireye UV7SC Scanner is a specialized ultraviolet flame detector designed for continuous-process industrial burner management systems. Specifically engineered for integration with Flame-Monitor and MicroM control platforms, this scanner utilizes a 1-inch NPT mounting connection to monitor ultraviolet radiation emitted by combustion flames. As a self-checking UV scanner, the UV7SC features an internal mechanical shutter that periodically blocks the sensing tube. This allows the internal circuitry to verify proper detector response and signal processing, ensuring the system can accurately identify a flame failure condition without false signals caused by tube aging or environmental interference. This component is essential for installations requiring non-interrupted burner operation exceeding 24 hours. Its rugged construction withstands high-ambient temperatures and provides high-sensitivity detection for gas and oil flames, maintaining a reliable flame signal even in dense combustion environments. Proper alignment on the sight pipe is critical to maximize signal strength and prevent nuisance shutdowns.
Key Technical Benefits- Continuous Self-Check Mechanism: Integrated shutter verifies sensor integrity every few seconds, meeting safety requirements for 24/7 burner cycles.
- Enhanced UV Sensitivity: Optimized for detecting the short-wave ultraviolet spectrum found in gas and light oil flames.
- Direct Controller Compatibility: Engineered for seamless communication with Fireye 70D40, 70D41, and M-Series flame safeguard modules.
- Industrial-Grade Housing: Built to endure the vibrations and heat common in boiler rooms and industrial process heating.
- NPT Threading: Standard 1-inch NPT connection ensures a secure, leak-free mount to the combustion chamber sight port.
How do I troubleshoot a weak flame signal on a UV7SC?
First, ensure the optical lens is clean and free of soot or debris. Verify that the scanner is properly aligned with the lead of the flame and that the shutter operation is audible or detectable via the controller's diagnostic pulse. If the signal remains low, check for carbon buildup in the sight pipe.
Can the UV7SC be used on a coal-fired burner?
While UV scanners are highly effective for gas and oil, coal flames often contain high levels of fly ash that can obscure the UV signal. In these applications, it is vital to use purge air to keep the line of sight clear and the sensor cooled.
What is the purpose of the 1-inch NPT mounting?
The 1" NPT interface provides a robust, threaded connection that facilitates easy installation on standard burner sight pipes, allowing for a pressure-tight seal that prevents heat and combustion gases from Escaping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
