Fireye UV1AL-3 Scanner

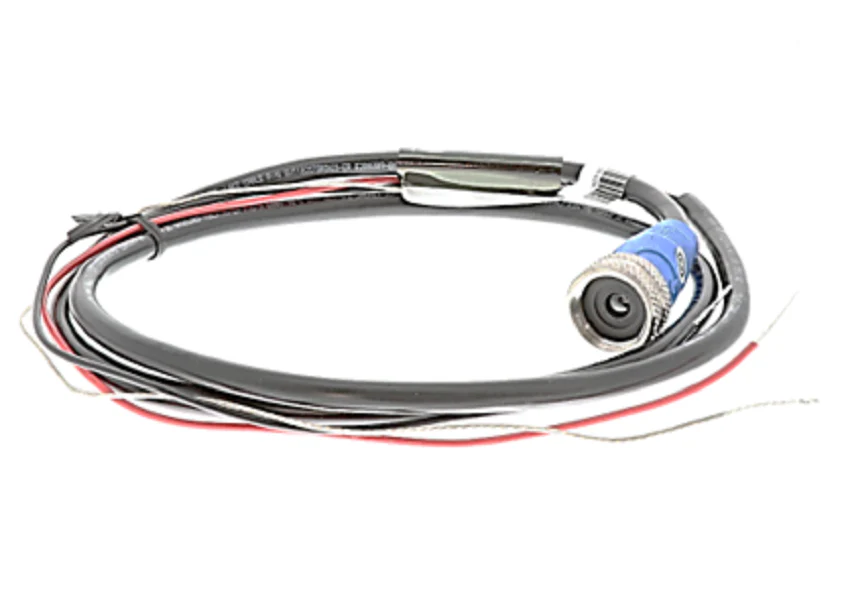

The Fireye UV1AL-3 Scanner is a non-self-checking ultraviolet flame scanner designed for integration with BurnerPRO, MBCE, and NXF4000 flame safeguard systems. This compact sensor is engineered for high-sensitivity detection of gaseous fuels, including natural gas and propane, and is suitable for light oil applications like No. 2 oil. Featuring a 1/2 inch NPT threaded coupling and a 3-foot TC-ER rated cable, the UV1AL-3 meets UL 1569 requirements for crush and impact resistance, ensuring durability in rugged industrial boiler environments. The quartz UV tube ionizes upon exposure to radiation from the flame zone, sending current pulses to the amplifier to maintain the flame relay. For optimal safety, this UV flame sensor must be used on burners that cycle at least once every 24 hours to exercise the safety checking circuit. Whether you are performing a flame scanner replacement or a new installation, this Fireye flame detector provides reliable signal processing at temperatures up to 200??F.
Key Benefits
- System Compatibility: Seamlessly interfaces with Fireye BurnerPRO, MBCE, and NXF4000 combustion controls.
- Rugged Cabling: Equipped with a 3ft TC-ER rated cable that complies with strict UL 1569 metal-clad standards for exposed runs.
- High Sensitivity: Optimized for ultraviolet radiation detection in natural gas and light oil burners, minimizing nuisance trips.
- Easy Installation: Features a standard 1/2" NPT connection for quick mounting to existing sight pipes.
- Industrial Grading: Capable of reliable operation in high-temperature environments ranging from -40??F to 200??F.
Common Questions
Can the UV1AL-3 be used for continuous burner operation?
No, since this is a non-self-checking scanner, it is designed for intermittent operation where the burner cycles at least once every 24 hours to verify the sensor's integrity during start-up.
Is this scanner compatible with heavy fuel oils?
While it can detect flames from heavier oils, unburned fuel or atomization shrouds may block UV radiation, leading to false flame failures. For heavy oil, infrared detection is often preferred over UV.
What is the maximum temperature rating for the scanner head?
The Fireye UV1AL-3 is rated for a maximum operating temperature of 200??F (94??C). Ensure proper insulation or cooling if mounted in higher heat zones.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
