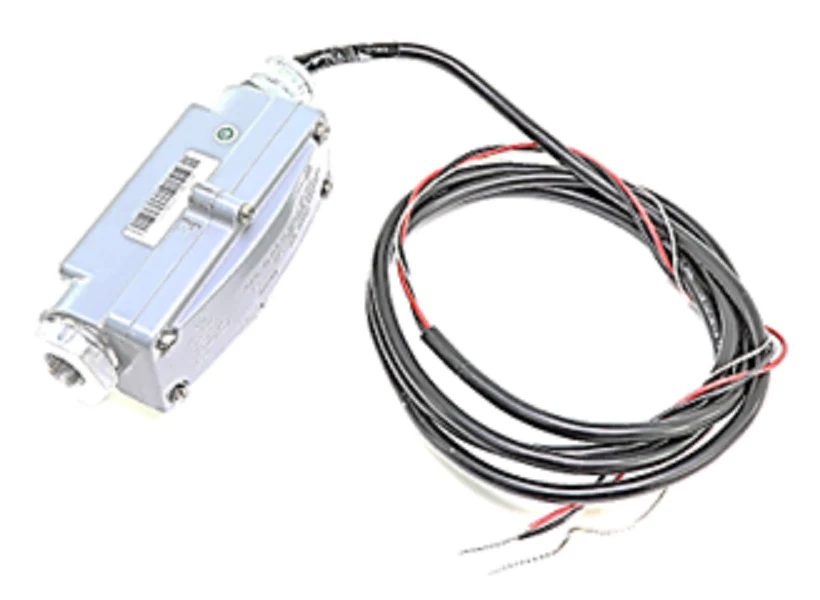

Fireye UV1A6-EX Scanner
The Fireye UV1A6-EX is a high-performance ultraviolent flame scanner engineered for reliable flame monitoring in hazardous environments. This non-self-checking UV scanner features a robust NEMA 7 rated explosion-proof housing, making it essential for industrial burner systems where volatile gases or combustible dusts are present. It is designed to detect ultraviolet radiation from fuel gases and light #2 oil flames, utilizing a specialized quartz sensor tube that ionizes in the presence of UV light to transmit a precise flame signal to the amplifier.
Built for durability and ease of installation, this model includes a 6-foot (72-inch) shielded lead cable rated for Tray Cable - Exposed Run (TC-ER). This Fireye explosion proof scanner is fully compatible with a wide range of flame safeguard controls, including the Fireye Flame-Monitor, MicroM, BurnerLogix, and Nexus systems. With a standard 1/2 inch NPT mounting collar and the ability to operate in temperatures ranging from -40??F to 200??F, the UV1A6-EX ensures consistent combustion safety and flame detection in the most demanding refinery, chemical plant, and power generation applications.
Key Benefits for Technicians- Hazardous Area Rating: Certified for Class 1, Div 1 & 2 (Groups C, D) and Class 2, Div 1 & 2 (Groups E, F, G) environments.
- Extended Reach: Equipped with a 6-foot factory-installed lead to simplify wiring in tight or complex industrial enclosures.
- Technical Compatibility: Seamlessly integrates with Fireye M-Series, D-Series, and FlameWorx controllers using 1/2" NPT connections.
- Rugged Construction: Features a heavy-duty NEMA 7 housing and quartz viewing window for maximum longevity in high-temperature settings.
- High Sensitivity: Optimized for detecting the UV spectrum in natural gas and light oil combustion without interference from hot refractory.
What flame safeguards are compatible with the UV1A6-EX?
This scanner is designed to work with Fireye MicroM, Flame-Monitor, BurnerLogix, and Nexus systems. It requires a compatible UV amplifier to process the flame signal correctly.
Can this scanner be used for continuous burner operation?
As a non-self-checking scanner, the UV1A6-EX is typically used in applications where the burner cycles at least once every 24 hours. For continuous operation, a self-checking model like the 45UV5 may be required depending on local codes.
Does the UV sensor tube need regular replacement?
The UV1A6-EX features a non-replaceable UV tube. If the sensitivity decreases or the sensor fails to detect a known flame, the entire internal scanner assembly must be replaced.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
