Fireye SB560532AA Control

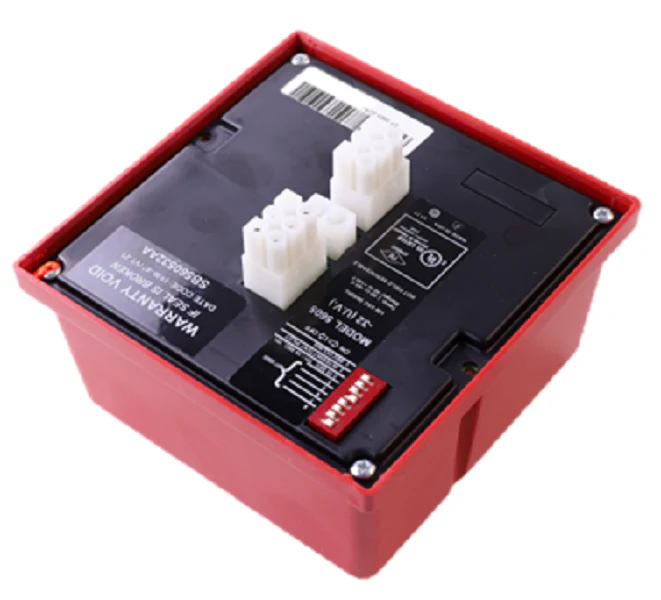

For high-demand commercial burner systems, the Fireye SB560532AA Control provides a robust, microprocessor-based solution for 120V 50/60Hz flame safety. This modular unit is engineered for single gas, oil, or combination burners, delivering automatic ignition and continuous monitoring. As a veteran-grade burner management system, the SB560532AA is a direct drop-in replacement for retired Honeywell Eclipse VeriFlame units, utilizing the same wiring subbase to minimize downtime during retrofits. This specific model features a non-purge sequence with a 10/15-second trial for ignition (TFI) and is configured for UV flame scanner applications. The integrated LED interface provides real-time status updates, while the recessed test jack allows for immediate flame signal voltage readings without interrupting the circuit. Designed to withstand harsh boiler room environments, this Fireye flame safeguard ensures precise digital logic and analog measurement for critical fuel-train sequences and lockout protection.
Key Benefits- Enhanced Compatibility: Serves as a seamless upgrade for Honeywell Eclipse VeriFlame systems, significantly reducing labor during field replacements.
- Intuitive Diagnostics: Features front-mounted LED status indicators and a dedicated test jack for rapid troubleshooting and real-time flame signal monitoring.
- Reliable Monitoring: Utilizes microprocessor technology to ensure accurate timing and consistent flame detection across multiple fuel types.
- Modular Flexibility: Compact plug-in design allows for easy integration into existing control panels with either open or closed wiring bases.
How do I test the flame signal on the SB560532AA?
Use a standard DC voltmeter with a test probe in the front-mounted test jack. This allows for live flame signal measurement to confirm scanner alignment and signal strength without bypassing safety interlocks.
What is the reset procedure after a flame failure lockout?
The unit features a local reset push button on the faceplate. Simply press and release the button to clear the lockout code. For remote applications, the control also supports a remote reset input via dedicated terminal wiring.
Can I use a flame rod with this specific model?
While the SB series supports various sensors, the SB560532AA is specifically factory-configured for ultraviolet (UV) scanners. For ionization/flame rod applications, ensure the proper amplifier module and wiring configuration are selected to match your sensor type.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,494.20
-65%$1,494.20
$522.97Fireye SB560532AA Control
For high-demand commercial burner systems, the Fireye SB560532AA Control provides a robust, microprocessor-based solution for 120V 50/60Hz flame safety. This modular unit is engineered for single gas, oil, or combination burners, delivering automatic ignition and continuous monitoring. As a veteran-grade burner management system, the SB560532AA is a direct drop-in replacement for retired Honeywell Eclipse VeriFlame units, utilizing the same wiring subbase to minimize downtime during retrofits. This specific model features a non-purge sequence with a 10/15-second trial for ignition (TFI) and is configured for UV flame scanner applications. The integrated LED interface provides real-time status updates, while the recessed test jack allows for immediate flame signal voltage readings without interrupting the circuit. Designed to withstand harsh boiler room environments, this Fireye flame safeguard ensures precise digital logic and analog measurement for critical fuel-train sequences and lockout protection.
Key Benefits- Enhanced Compatibility: Serves as a seamless upgrade for Honeywell Eclipse VeriFlame systems, significantly reducing labor during field replacements.
- Intuitive Diagnostics: Features front-mounted LED status indicators and a dedicated test jack for rapid troubleshooting and real-time flame signal monitoring.
- Reliable Monitoring: Utilizes microprocessor technology to ensure accurate timing and consistent flame detection across multiple fuel types.
- Modular Flexibility: Compact plug-in design allows for easy integration into existing control panels with either open or closed wiring bases.
How do I test the flame signal on the SB560532AA?
Use a standard DC voltmeter with a test probe in the front-mounted test jack. This allows for live flame signal measurement to confirm scanner alignment and signal strength without bypassing safety interlocks.
What is the reset procedure after a flame failure lockout?
The unit features a local reset push button on the faceplate. Simply press and release the button to clear the lockout code. For remote applications, the control also supports a remote reset input via dedicated terminal wiring.
Can I use a flame rod with this specific model?
While the SB series supports various sensors, the SB560532AA is specifically factory-configured for ultraviolet (UV) scanners. For ionization/flame rod applications, ensure the proper amplifier module and wiring configuration are selected to match your sensor type.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
