Fireye SB560523AA Control

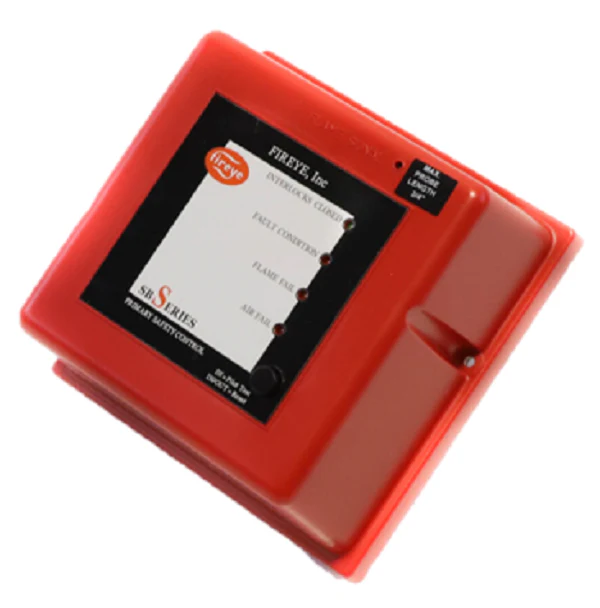

The Fireye SB560523AA is a specialized 120VAC microprocessor-based flame safeguard control designed for heavy-duty commercial burner management. As a direct drop-in replacement for the discontinued Eclipse VeriFlame VF560523AA, this chassis integrates seamlessly into existing subbases without requiring a full system rewire. This SB Series burner control utilizes flame rectification (FR) technology, making it the standard choice for systems using a flame rod for ionization-based detection. Engineers and technicians can field-select between a 10 or 15-second Trial for Ignition (TFI) to meet specific application requirements for gas or oil burners. The built-in purge timing sequence ensures the combustion chamber is cleared of residual fuel before ignition, significantly enhancing system safety. With front-mounted LED indicators and a dedicated test jack for real-time flame signal monitoring, the Fireye SB560523AA provides the precise diagnostic feedback and reliable combustion control necessary for minimizing downtime in industrial heating environments.
Key Benefits for Contractors:
- Eclipse VeriFlame Replacement: Engineered as a functional equivalent to the VF560523AA, utilizing the same wiring footprint to save labor hours during field upgrades.
- Configurable Ignition Timing: Features selectable 10/15-second TFI, allowing for greater flexibility across different burner types and fuel profiles.
- Integrated Purge Cycle: Automatically manages the purge sequence to ensure safe startup conditions in compliance with industrial safety standards.
- Diagnostic Monitoring: Includes a front-panel test jack and LED status indicators for immediate flame signal verification and lockout troubleshooting.
- Flame Rectification Logic: Specifically optimized for flame rod sensors, providing stable and accurate flame presence detection for single-burner systems.
Common Technical Questions:
Is the Fireye SB560523AA compatible with UV scanners?
No, this specific model is designed for flame rectification (FR) and is intended for use with flame rods. If your system requires an ultraviolet scanner, you must select a model compatible with UV sensing logic.
Does this unit require a new wiring subbase if replacing a VeriFlame?
No, the SB560523AA is designed to fit the existing Honeywell/Eclipse VeriFlame subbase, allowing for a quick "plug-and-play" replacement without the need for extensive terminal rewiring.
How do I change the TFI timing on this control?
The trial for ignition timing is selectable via internal dip switch settings on the chassis, allowing you to toggle between the 10-second and 15-second parameters before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
