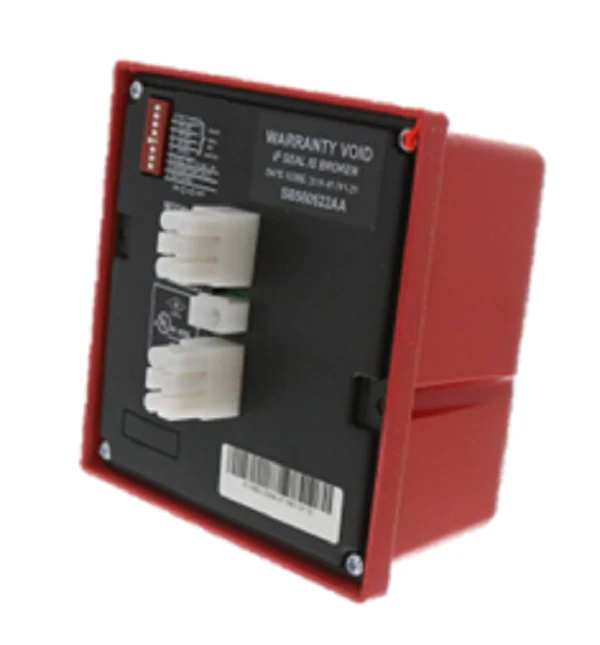

Fireye SB560522AA Control
The Fireye SB560522AA is a technical-grade 120 VAC burner control engineered for industrial heating applications requiring precise flame supervision. This flame safety control utilizes advanced UV flame detection technology to ensure stable monitoring in high-demand environments. Designed as a versatile solution for primary control replacement, the SB560522AA features a dual-timing 10/15 second trial-for-ignition (TFI) capability, allowing technicians to field-configure the timing to meet specific burner requirements. The integrated purge function clears the combustion chamber prior to ignition, reducing the risk of fuel accumulation and enhancing system reliability. Built for compatibility with standard Fireye UV sensors, this unit manages the complete ignition sequence and provides continuous flame monitoring for industrial burner systems. Its robust circuitry is specifically calibrated to handle the electrical noise and temperature fluctuations common in heavy-duty boiler rooms and process heating plants.
Technical Benefits for Contractors:- Configurable TFI Timing: Switchable 10 or 15-second trial-for-ignition provides flexibility across diverse burner models.
- Advanced UV Sensitivity: High-performance UV sensor technology ensures rapid flame signal acquisition and mitigates nuisance shutdowns.
- Integrated Safety Purge: Pre-ignition purge cycle validates that the system is clear for safe lite-off sequences.
- 120V Industrial Standard: Direct compatibility with standard industrial control voltages simplifies electrical integration during retrofits.
- Flame Signal Reliability: Maintains steady flame supervision even in large-scale combustion chambers where flame positioning varies.
What UV sensors are compatible with the Fireye SB560522AA?
This control is designed to interface with Fireye UV scanners such as the UV1A series to provide consistent flame detection for industrial burners.
How do I select between 10 and 15 second TFI?
The trial-for-ignition timing is typically determined by the wiring configuration or internal settings of the specific SB56 series chassis used in your application.
Does this unit support pre-purge and post-purge cycles?
The SB560522AA includes a dedicated purge function to ensure the combustion chamber is properly ventilated before the ignition sequence begins.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,565.91
-65%$1,565.91
$548.07Fireye SB560522AA Control
