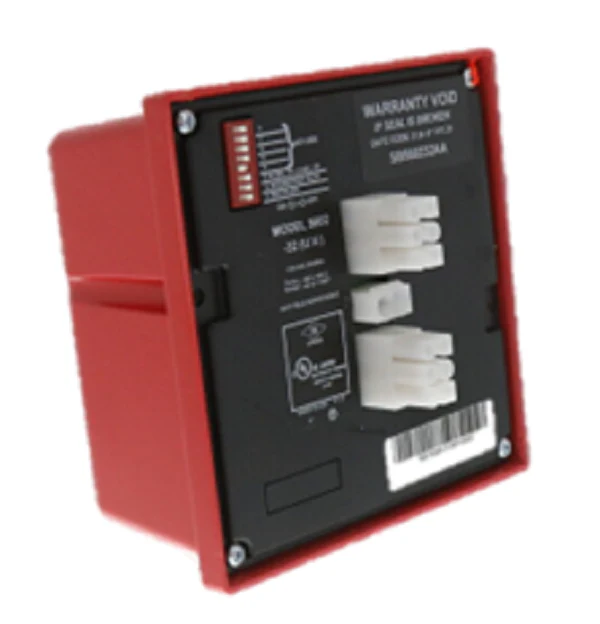

Fireye SB560232AA Control
The Fireye SB560232AA is a specialized flame safeguard control designed for industrial and commercial burner applications that require immediate UV flame detection without a dedicated purge cycle. This 120VAC combustion safety control is engineered for high-reliability systems where the Trial for Ignition (TFI) period is critical, offering a selectable 5/10 second TFI. Built to withstand rugged boiler room environments, the SB560232AA integrates seamlessly with UV flame scanners to provide continuous monitoring and rapid response to flame failure. This Fireye flame monitor is FM approved and UL listed, ensuring it meets strict regulatory standards for burner management systems (BMS). As a non-purge module, it is typically preferred in atmospheric burner configurations or systems where external timers control the pre-purge sequence. This unit provides a robust replacement path for legacy Fireye controls, maintaining uncompromising safety in heat processing and steam generation.
Key Benefits for Technicians:
- Dual TFI Timing: Field-flexible 5 or 10-second trial for ignition ensures compatibility with various burner light-off sequences.
- Ultraviolet Detection: Designed for high-sensitivity UV flame monitoring, providing accurate burner status even in high-temperature combustion zones.
- No-Purge Configuration: Ideal for specific commercial HVACR applications where a built-in purge cycle is not required or is managed by an external controller.
- Industrial Durability: Solid-state electronics housed in a compact chassis for long-term reliability in specialized combustion environments.
- Drop-in Integration: Standardized 120VAC power requirements and clear terminal labeling simplify field installation and troubleshooting.
Common Questions & Troubleshooting:
Does this control require a specific UV scanner?
Yes, the Fireye SB560232AA is designed to work with compatible Fireye UV flame scanners. Ensure your sensor and wiring are rated for ultraviolet detection to prevent nuisance shutdowns or signal loss.
Can I use this for a system that requires a 30-second pre-purge?
No, this specific model (no purge) does not include an internal purge timer. If your sequence of operation mandates a pre-purge, you must use an external timer or select a different module in the Fireye series with integrated purge logic.
What does the 5/10 second TFI signify?
This refers to the time allowed for the burner to establish a flame signal before the control locks out. This SB560232AA allows for 5 or 10 seconds of ignition trial depending on the system wiring and requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,494.20
-65%$1,494.20
$522.97Fireye SB560232AA Control
