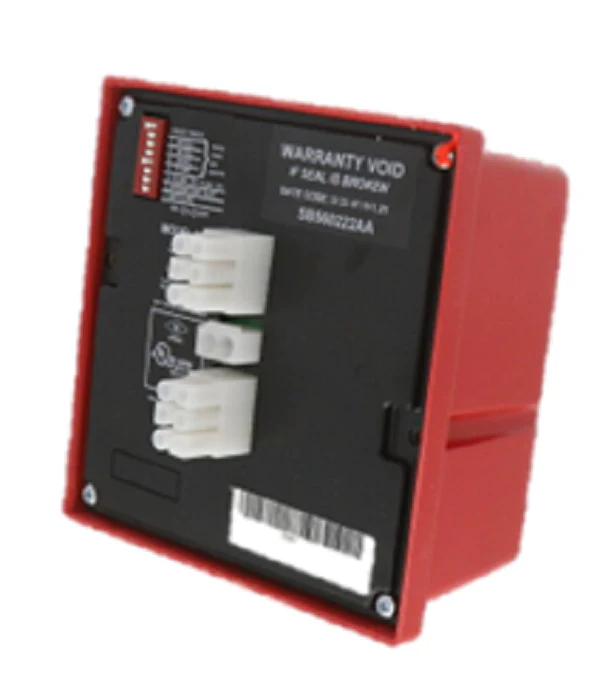

Fireye SB560222AA Control
The Fireye SB560222AA Control is a microprocessor-based flame safeguard control designed for the automated ignition and continuous monitoring of single gas, oil, or combination burners. Operating on a 120VAC burner control chassis, this unit provides critical combustion safety through a systematic UV purge sequence and a selectable 5 or 10-second trial for ignition (TFI). As a modular burner management system, it integrates digital logic to manage the start-up sequence, verifying the presence of air before initiating the ignition phase. The chassis is a direct drop-in replacement for the retired Eclipse VeriFlame VF560222AA, utilizing existing wiring subbases for efficient field upgrades. Its interface includes front-panel LED indicators for real-time status and a recessed test jack for direct voltage readings from the ultraviolet flame scanner. This digital controller ensures industrial-grade reliability for process heating and commercial boiler applications, maintaining strict compliance with EN298 and UL flame safety standards.
Key Benefits- Universal Compatibility: Serves as a seamless replacement for the legacy Eclipse VeriFlame series without requiring significant rewiring.
- Enhanced Field Diagnostics: Features a built-in test jack for accurate flame signal measurement and simplified troubleshooting.
- Selectable TFI Timings: Hardware-selectable 5 or 10-second ignition windows offer flexibility for different fuel types and burner configurations.
- Robust Safety Logic: Integrated purge function clears residual combustible gases to prevent delayed ignition and system damage.
Is the Fireye SB560222AA compatible with my current Eclipse VeriFlame subbase?
Yes, this model is specifically engineered as a direct replacement for the VF560222AA and fits the standard SB22194 wiring base often found in existing Honeywell and Eclipse installations.
What flame sensors can I use with this control?
This specific chassis is configured for ultraviolet (UV) detection and is compatible with non-self-checking UV scanners like the Fireye UV1A series or equivalent rectified sensors.
How do I reset the unit after a flame lockout occurs?
The front-mounted reset button allows manual clearing of lockout conditions. Additionally, it can enter a 'check' mode to facilitate pilot turndown testing without cycling the entire system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,565.91
-65%$1,565.91
$548.07Fireye SB560222AA Control
The Fireye SB560222AA Control is a microprocessor-based flame safeguard control designed for the automated ignition and continuous monitoring of single gas, oil, or combination burners. Operating on a 120VAC burner control chassis, this unit provides critical combustion safety through a systematic UV purge sequence and a selectable 5 or 10-second trial for ignition (TFI). As a modular burner management system, it integrates digital logic to manage the start-up sequence, verifying the presence of air before initiating the ignition phase. The chassis is a direct drop-in replacement for the retired Eclipse VeriFlame VF560222AA, utilizing existing wiring subbases for efficient field upgrades. Its interface includes front-panel LED indicators for real-time status and a recessed test jack for direct voltage readings from the ultraviolet flame scanner. This digital controller ensures industrial-grade reliability for process heating and commercial boiler applications, maintaining strict compliance with EN298 and UL flame safety standards.
Key Benefits- Universal Compatibility: Serves as a seamless replacement for the legacy Eclipse VeriFlame series without requiring significant rewiring.
- Enhanced Field Diagnostics: Features a built-in test jack for accurate flame signal measurement and simplified troubleshooting.
- Selectable TFI Timings: Hardware-selectable 5 or 10-second ignition windows offer flexibility for different fuel types and burner configurations.
- Robust Safety Logic: Integrated purge function clears residual combustible gases to prevent delayed ignition and system damage.
Is the Fireye SB560222AA compatible with my current Eclipse VeriFlame subbase?
Yes, this model is specifically engineered as a direct replacement for the VF560222AA and fits the standard SB22194 wiring base often found in existing Honeywell and Eclipse installations.
What flame sensors can I use with this control?
This specific chassis is configured for ultraviolet (UV) detection and is compatible with non-self-checking UV scanners like the Fireye UV1A series or equivalent rectified sensors.
How do I reset the unit after a flame lockout occurs?
The front-mounted reset button allows manual clearing of lockout conditions. Additionally, it can enter a 'check' mode to facilitate pilot turndown testing without cycling the entire system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
