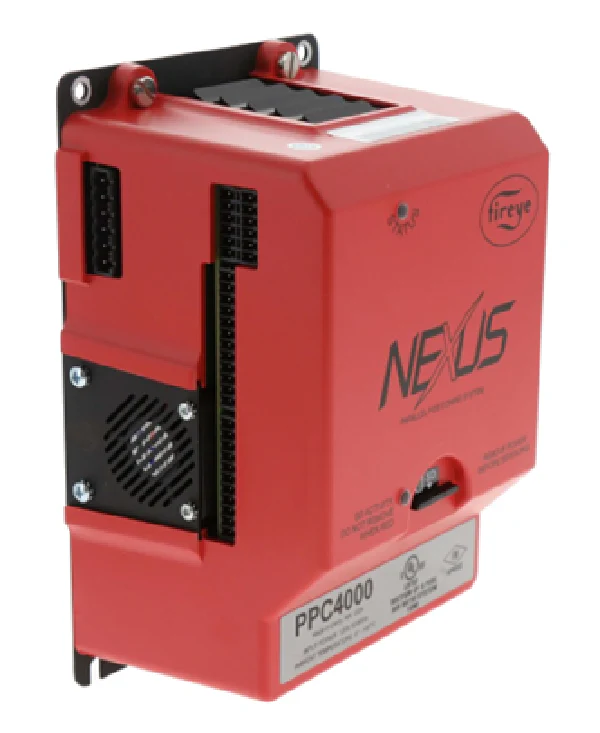

Fireye PPC4000 Contorl
The Fireye PPC4000 is a high-precision, microprocessor-based parallel positioning system engineered for sophisticated air-fuel ratio control. Designed for industrial and commercial burners, this controller eliminates the mechanical hysteresis and linkage play found in traditional cam-and-linkage systems by independently managing up to ten servomotors. It supports multi-fuel applications with integrated O2 trim capabilities and variable speed drive (VSD) control to optimize combustion efficiency. The unit features built-in Modbus RTU communication for seamless integration into Building Automation Systems (BAS) and a modular design that facilitates easy DIN rail mounting. By maintaining tight excess air levels across the entire firing range, the PPC4000 ensures maximum fuel economy and reduced emissions. This rugged combustion controller provides reliable sequencing and safety interlocking, making it a critical component for contractors tasked with upgrading boiler plant performance and achieving precise burner management.
Key Benefits for Contractors
- Enhanced Combustion Accuracy: Utilizes independent servo motor control to maintain repeatable air-fuel ratios.
- System Flexibility: Supports up to 10 profiles for multi-fuel burners with customizable firing rate curves.
- Efficiency Gains: Integrated PID control loop for steam pressure or water temperature minimizes cycling and fuel consumption.
- Advanced Diagnostics: On-board memory stores error history and lockout data for faster troubleshooting and reduced downtime.
- Reduced Mechanical Failure: Eliminates complex mechanical linkages, reducing long-term maintenance requirements on the burner front.
Common Questions
How do I troubleshoot an F70 alarm on the PPC4000?
An F70 fault typically indicates a communication loss between the main controller and its assigned servos. Check the CANbus wiring, ensure proper 120-ohm termination at the end of the line, and verify that all servo addresses are unique and match the configuration parameters.
Can the PPC4000 control a VFD for the blower motor?
Yes, the PPC4000 includes dedicated 4-20mA or 0-10VDC outputs for Variable Speed Drive integration. This allows for precise blower speed mapping alongside actuator positioning, further maximizing electrical savings and combustion stability.
What is the maximum number of actuators this controller can handle?
The Fireye PPC4000 can manage up to 10 independent servomotors, providing comprehensive control over primary air, secondary air, fuel valves, and flue gas recirculation (FGR) dampers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
